FJX-04-04-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/4" Hose Barb x 1/4" Female 37° JIC Swivel | Carbon Steel
Minimum Order Quantity: 5 Units
Kurt Hydraulics
37° JIC Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.46 |
| 40–79 | $5.84 |
| 80+ | $5.15 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:

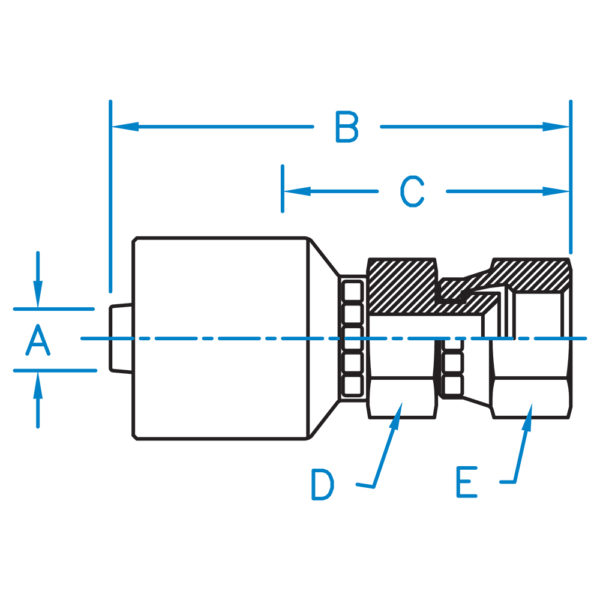

| Part Number | Hose I.D. (in.) | B | C | D | E | Thread |
|---|---|---|---|---|---|---|
| FJX-04-03-K2 | 1/4" | 2.01" | 0.95" | 9/16" | 9/16" | 3/8" – 24 |
| FJX-04-04-K2 | 1/4" | 2.08" | 1.02" | 9/16" | 9/16" | 7/16" – 20 |
| FJX-04-05-K2 | 1/4" | 2.22" | 1.16" | 9/16" | 5/8" | 1/2" – 20 |
| FJX-04-06-K2 | 1/4" | 2.17" | 1.09" | 9/16" | 11/16" | 9/16" – 18 |
| FJX-04-08-K2 | 1/4" | 2.35" | 1.29" | 11/16" | 7/8" | 3/4" – 16 |
| FJX-06-04-K2 | 3/8" | 2.41" | 1.04" | 11/16" | 9/16" | 7/16" – 20 |
| FJX-06-05-K2 | 3/8" | 2.41" | 1.04" | 11/16" | 5/8" | 1/2" – 20 |
| FJX-06-06-K2 | 3/8" | 2.50" | 0.72" | 3/4" | 3/4" | 9/16" – 18 |
| FJX-06-08-K2 | 3/8" | 2.47" | 1.24" | 3/4" | 7/8" | 3/4" – 16 |
| FJX-06-10-K2 | 3/8" | 2.80" | 1.43" | 7/8" | 1" | 7/8" – 14 |
| FJX-08-06-K2 | 1/2" | 2.52" | 1.18" | 11/16" | 11/16" | 9/16" – 18 |
| FJX-08-08-K2 | 1/2" | 2.64" | 1.30" | 7/8" | 7/8" | 3/4" – 16 |
| FJX-08-10-K2 | 1/2" | 2.80" | 1.46" | 7/8" | 1" | 7/8" – 14 |
| FJX-08-12-K2 | 1/2" | 2.90" | 1.56" | 1" | 1-1/4" | 1-1/16" – 12 |
