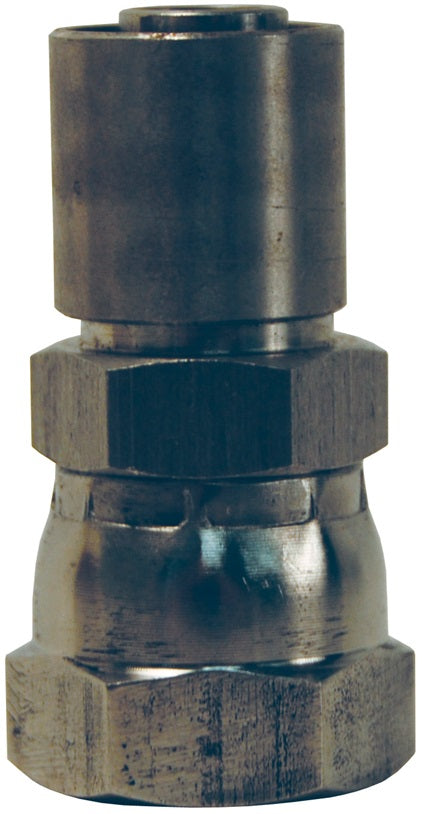

FJS-08-08 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 1/2" Female JIC Swivel x -08 Hose Size | 304 Stainless Steel
Dixon

FJS-08-08 by Dixon Valve | Crimp Fitting for PTFE Hose | with Crimp Collar | 1/2" Female JIC Swivel x -08 Hose Size | 304 Stainless Steel

Sale price$34.27

Dixon Valve
PTFE Hose Fitting | Nominal Crimp Fitting | Female JIC Swivel

Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.

Crimp Collars for all Nominal fittings are included.

Product Data:

Series:
  • FJS Series
Shape:

Straight

Ends Configuration:
  • 1/2in Female JIC
  • 1/2in Hose Barb
Use:
  • For use with nominal smooth bore PTFE hoses.
Carbon Steel
Part Number		 304 Stainless Steel
Part Number		 Brass
Part Number		 Hose Size Thread Size
FJC-04-04 FJS-04-04 FJB-04-04 -04 1/4" Female JIC Swivel
FJC-05-05 FJS-05-05 FJB-05-05 -05 5/16" Female JIC Swivel
FJC-06-06 FJS-06-06 FJB-06-06 -06 3/8" Female JIC Swivel
FJC-08-08 FJS-08-08 FJB-08-08- -08 1/2" Female JIC Swivel
FJC-10-10 FJS-10-10 FJB-10-10 -10 5/8" Female JIC Swivel
FJC-12-12 FJS-12-12 FJB-12-12 -12 3/4" Female JIC Swivel
FJC-16-16 FJS-16-16 FJB-16-16 -16 1" Female JIC Swivel
FJC-20Z-20 - - -20Z 1-1/4" Female JIC Swivel

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
