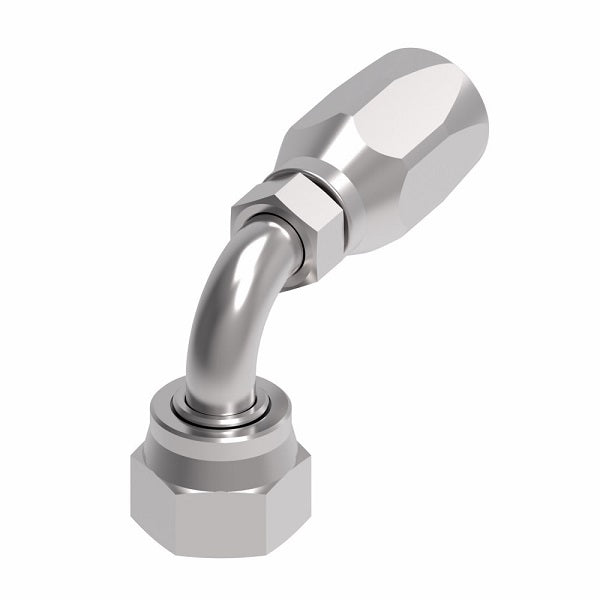

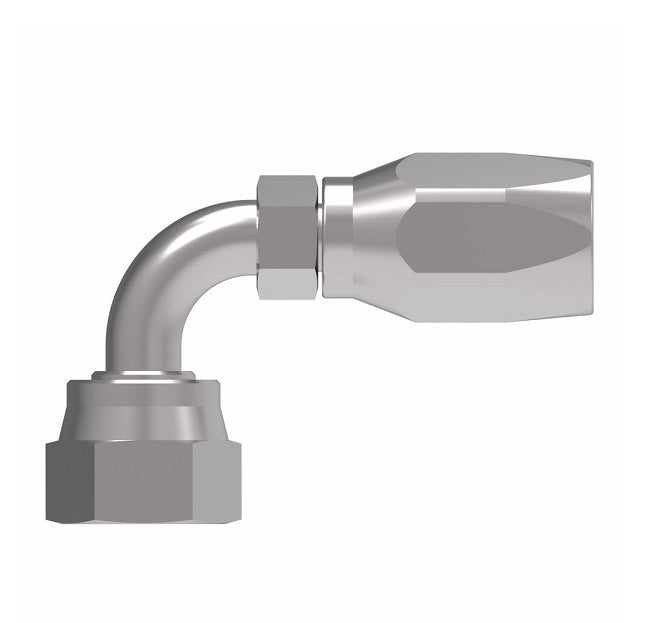

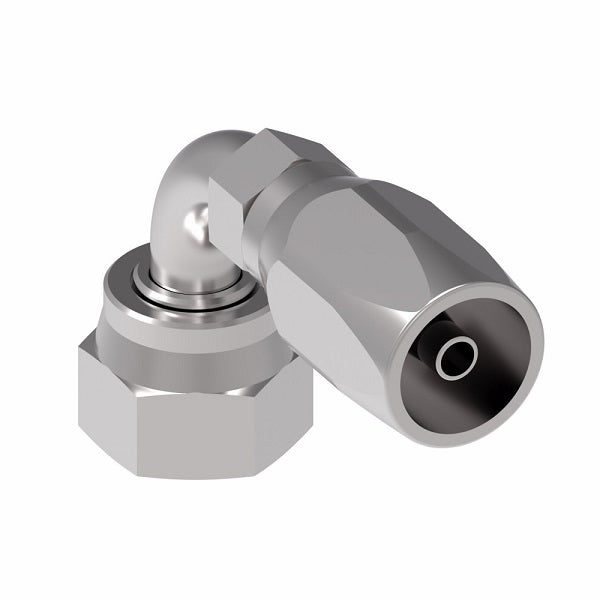

FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel
FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

FJ9734-0808S Aeroquip by Danfoss | Female ORS Swivel Short Drop 90° Elbow 100R2 Skive Style Reusable Hose Fitting | FJ Series | -08 Female O-Ring Face Seal Swivel x -08 Reusable Hose End | Steel

Sale price$74.36

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $69.90
40–79 $63.21
80+ $55.77
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female O-Ring Face Seal
  • 1/2in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ9734-0606S -06 11/16-16 2.72" 1.25" 0.24" 0.90"
FJ9734-0808S -08 13/16-16 3.02" 1.52" 0.37" 1.15"
FJ9734-1010S -10 1-14 3.24" 1.69" 0.46" 1.27"
FJ9734-1212S -12 1-3/16-12 4.11" 2.24" 0.58" 1.88"
