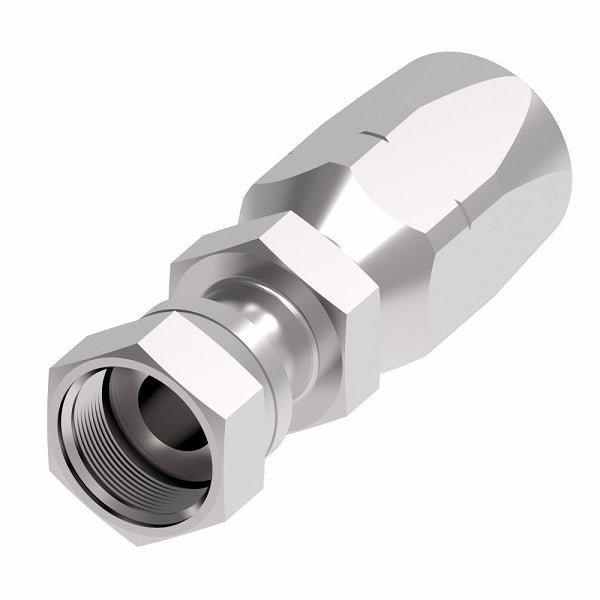

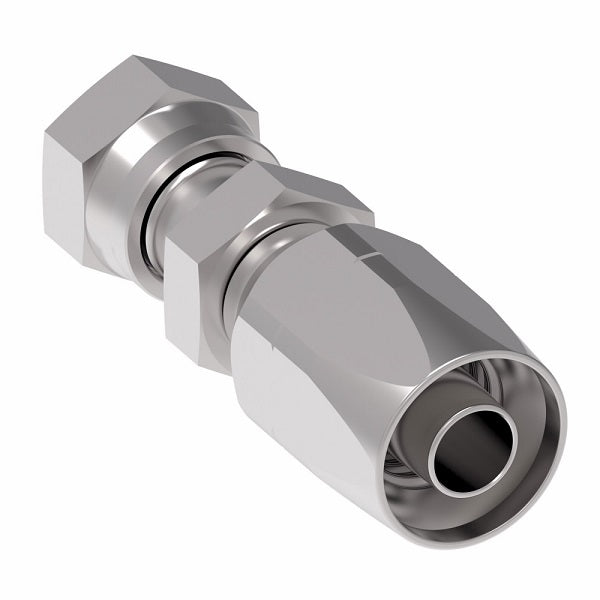

FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

FJ9732-1616S Aeroquip by Danfoss | Female ORS Swivel 100R2 Skive Style Reusable Hose Fitting | FJ Series | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

Sale price$192.06

Aeroquip® by Danfoss
100R2 Skive Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $180.54
20–59 $163.25
60+ $144.05
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female O-Ring Face Seal
  • 1in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Note:
  • For use with hose: 2766.
  • Also for use with 2781 and FC195 ONLY at SAE 100R2 pressures.
Steel
Part Number 		Hose Size Thread A D EØ
FJ9732-0404S -04 9/16-18 2.75" 1.52" 0.17"
FJ9732-0606S -06 11/16-16 3.02" 1.55" 0.26"
FJ9732-0808S -08 13/16-16 3.40" 1.89" 0.39"
FJ9732-1010S -10 1-14 3.58" 2.03" 0.50"
FJ9732-1212S -12 1-3/16-12 4.05" 2.18" 0.61"
FJ9732-1616S -16 1-7/16-12 4.78" 2.73" 0.82"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
