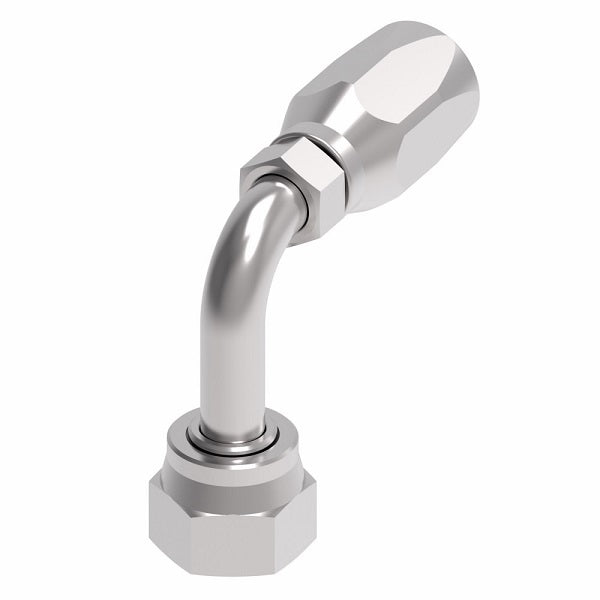

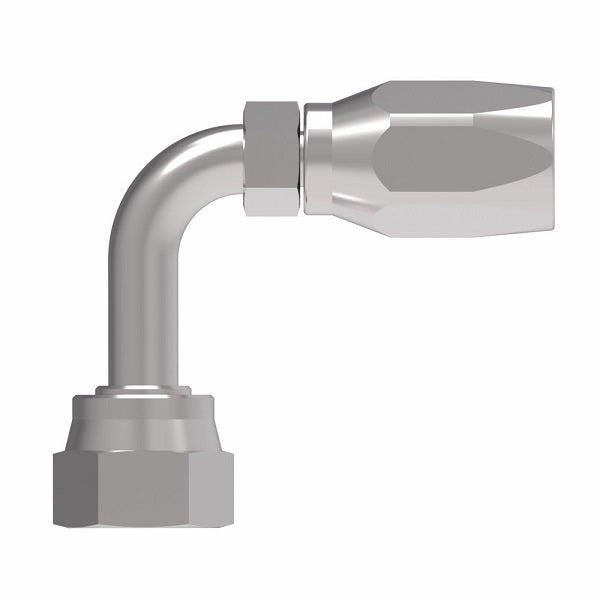

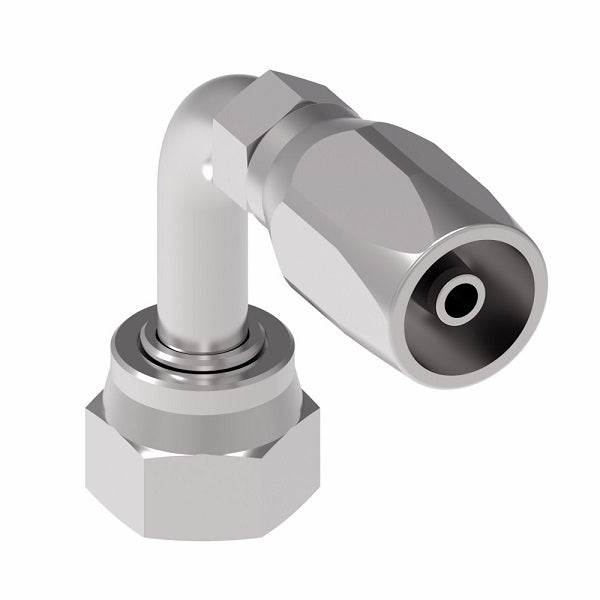

FJ9709-2020S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | FJ Series | -20 Female O-Ring Face Seal Swivel x -20 Reusable Hose End | Steel
FJ9709-2020S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | FJ Series | -20 Female O-Ring Face Seal Swivel x -20 Reusable Hose End | Steel
FJ9709-2020S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | FJ Series | -20 Female O-Ring Face Seal Swivel x -20 Reusable Hose End | Steel

FJ9709-2020S Aeroquip by Danfoss | Female ORS Swivel Long Drop 90° Elbow 100R5 Reusable Hose Fitting | FJ Series | -20 Female O-Ring Face Seal Swivel x -20 Reusable Hose End | Steel

Sale price$576.06

Aeroquip® by Danfoss
SAE 100R5 Style Reusable Hose Fitting - FJ Series - Female O-Ring Face Seal (ORS) Swivel Long Drop - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–14 $541.50
15–29 $489.65
30+ $432.05
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Female O-Ring Face Seal
  • 1-1/4in Reusable Hose End
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Hose Size "T" Thread A D EØ H
FJ9709-0606S -06 11/16-16 2.25" 1.35" 0.22" 2.13"
FJ9709-0808S -08 13/16-16 2.88" 1.73" 0.36" 2.51"
FJ9709-1010S -10 1-14 3.03" 1.74" 0.46" 2.76"
FJ9709-1212S -12 1-3/16-12 3.74" 2.17" 0.55" 3.78"
FJ9709-1616S -16 7/16-12 3.55" 2.27" 0.76" 4.50"
FJ9709-2020S -20 1-11/16-12 4.02" 2.65" 1.01" 5.09"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
