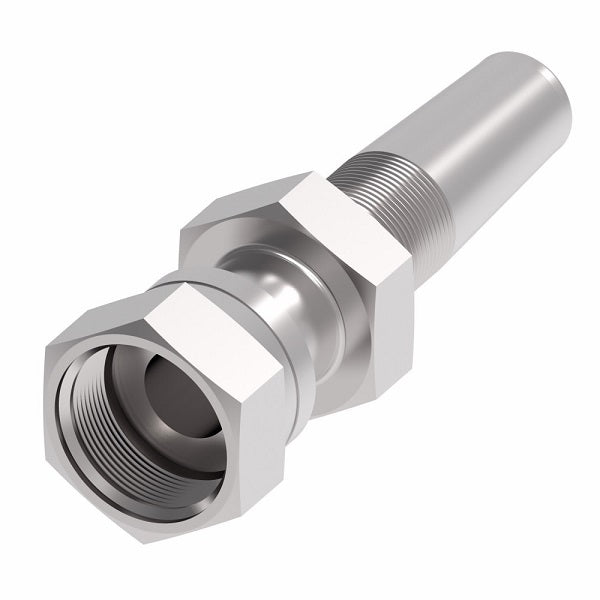

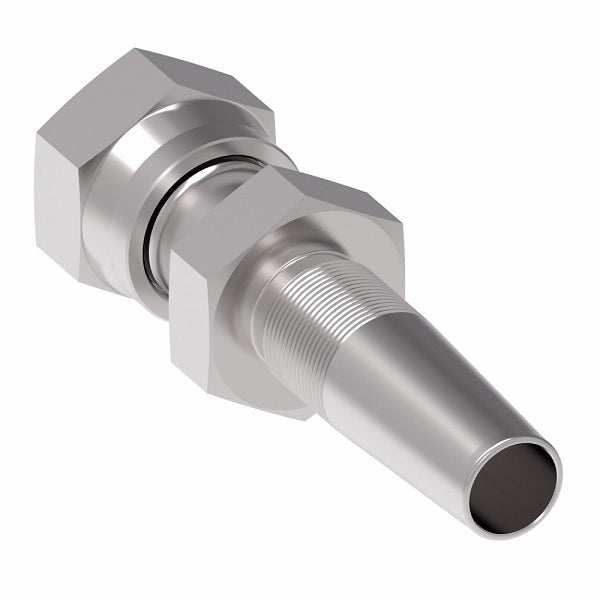

FJ8732-1616S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
FJ8732-1616S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel
FJ8732-1616S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

FJ8732-1616S Weatherhead by Danfoss | Female ORS Swivel Field Attachable Fitting for 1 & 2 Wire Braided Hose | Nipple Assembly | -16 Female O-Ring Face Seal Swivel x -16 Reusable Hose End | Steel

Sale price$146.76

Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female O-Ring Face Seal Swivel - Straight
Buy More, Save More!
Quantity Price Each
5–19 $137.95
20–59 $124.75
60+ $110.07
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female O-Ring Face Seal
  • 1in Reusable Hose End
Material(s):
  • Steel
Features:
  • Non-skive, two-piece crimp Fitting.
  • Clear silver hexavalent chromium-free plating.
  • Carbon steel material.
Component Part Numbers
Complete Fitting
Part Number 		Nipple Assembly
Part Number
Steel 		Reusable Socket
Part Number 		Thread Size Hose Size A D E&Oslash
1RA4FR4 FJ8732-0404S 1RA4 9/16-18 -04 2.62" 1.58" 0.16"
1RA6FR6 FJ8732-0606S 1RA6 11/16-16 -06 2.95" 1.82" 0.26"
1RA8FR8 FJ8732-0808S 1RA8 13/16-16 -08 3.38" 1.91" 0.36"
1RA12FR12 FJ8732-1212S 1RA12 1-3/16-12 -12 4.00" 2.40" 0.55"
1RA16FR16 FJ8732-1616S 1RA16 1-7/16-12 -16 4.64" 2.51" 0.78"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
