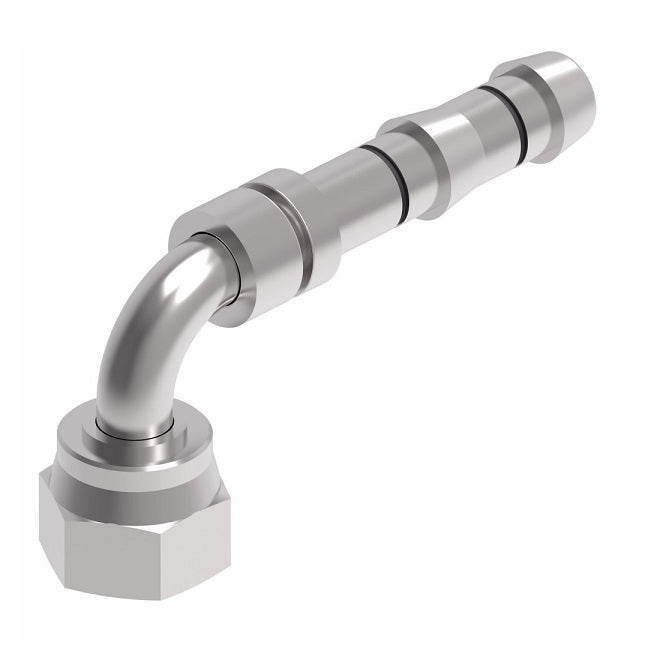

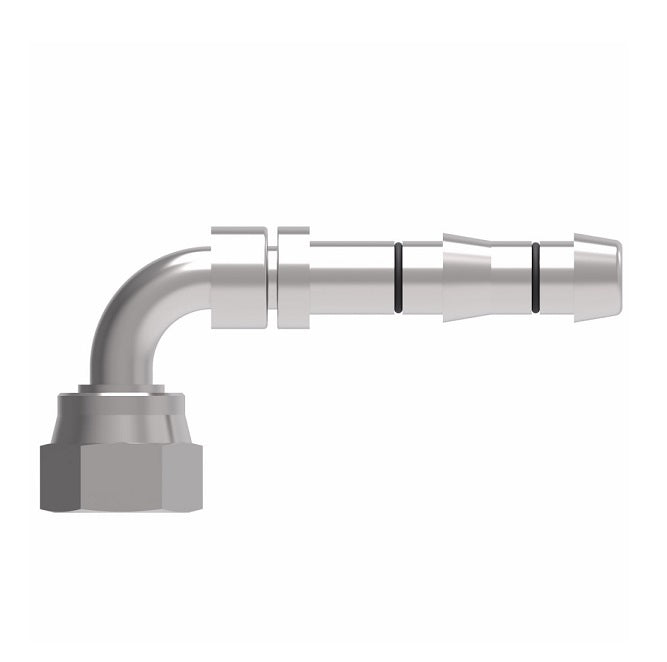

FJ5994-03-1212S E-Z Clip System by Danfoss | Female ORS Swivel 90° Elbow | A/C Refrigeration Fitting | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female ORS Swivel - 90° Elbow
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $48.39 |
| 40–79 | $43.76 |
| 80+ | $38.61 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | H Ref. | Ref. |
Clip & Cage Kit (Required) |
| FJ5994-0404S | -04 | - | - | - | - | FF14175 | |
| FJ5994-01-0606S | 1-1/16-16 | -06 | 2.50" | 0.98" | 0.91" | 0.81" | FF14171 |
| FJ5994-02-0808S | 13/16-16 | -08 | 2.74" | 1.20" | 1.15" | 0.94" | FF14172 |
| FJ5994-04-1010S | 1-14 | -10 | 3.09" | 1.53" | 1.27" | 1.12" | FF14173 |
| FJ5994-03-1212S | 1-3/16-12 | -12 | 3.36" | 1.78" | 1.90" | 1.38" | FF14174 |
| FJ5994-05-0406S | 9/16-18 | -06 | 2.44" | 0.92" | 0.82" | 0.69" | FF14171 |
| FJ5994-05-1012S | 1-14 | -12 | 3.11" | 1.53" | 1.78" | 1.13" | FF14174 |
| FJ5994-07-0806S | 13/16-16 | -06 | 2.66" | 1.10" | 1.15" | 0.94" | FF14171 |
| FJ5994-08-1216S | 1-3/16-12 | -16 | - | - | - | - | FF14401 |
| FJ5994-10-1616S | 1-7/16-12 | -16 | - | - | - | - | FF14401 |
| FJ5994-11-0810S | 13/16-16 | -10 | - | - | - | - | FF14173 |
| GA23913-10-12* | 1-14 | -12 | 3.67" | 2.10" | 1.54" | 30mm | FF14174 |
| GA23913-4-4* | 9/16-18 | -04 | 2.04" | 1.37" | 0.82" | 17mm | FF14175 |
* GA Part numbers have a metric hex
