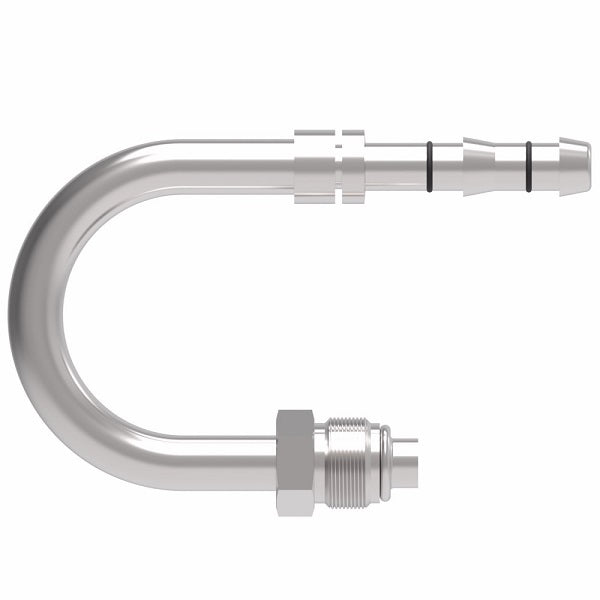

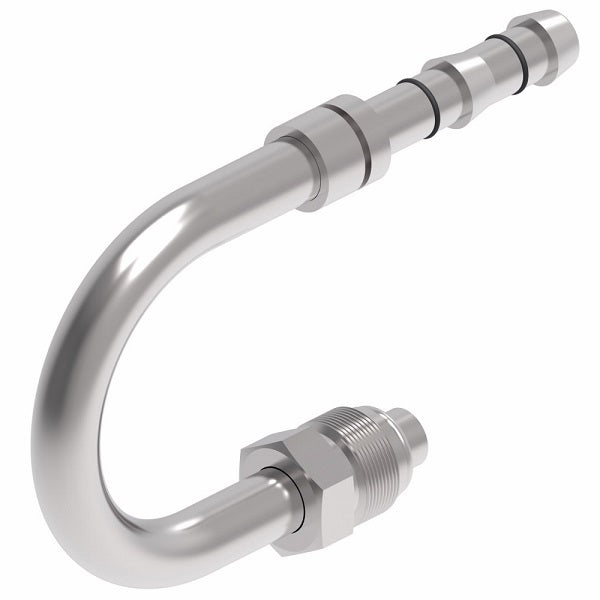

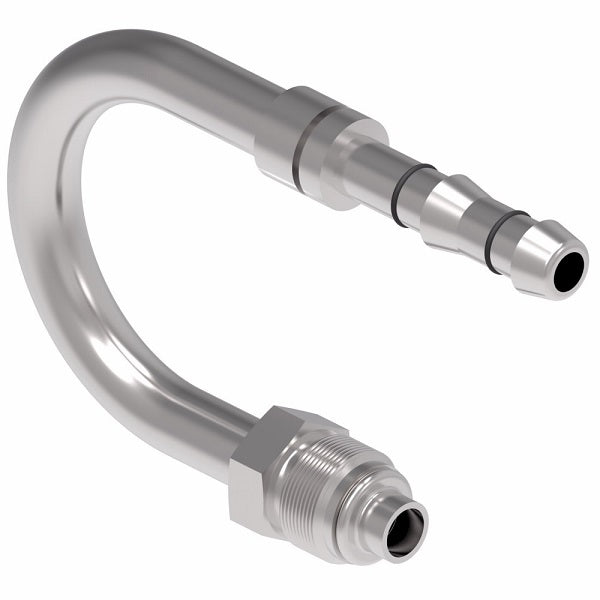

FJ3804-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3804-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel
FJ3804-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

FJ3804-1010S E-Z Clip System by Danfoss | Male O-Ring (Short Pilot) 180° Elbow | A/C Refrigeration Fitting | -10 Male O-Ring Short Pilot x -10 Hose Barb | Steel

Sale price$34.42

Danfoss A/C & Refrigeration
E-Z Clip System - Male O-Ring (Short Pilot) - 180° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Buy More, Save More!
Quantity Price Each
10–39 $32.35
40–79 $29.26
80+ $25.82
Discounts applied in cart/checkout.

Product Data:

Brand:
  • E-Z Clip
Shape:

Straight

Ends Configuration:
  • 5/8in Male O-Ring Short Pilot
  • 5/8in Hose Barb
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3804-0606S 5/8-18 -06 - 2.00" 0.625" FF14171 22546-11 FF90178-11
FJ3804-1010S 7/8-18 -10 - 3.00" 0.88" FF14173 22546-15 FF90178-15
