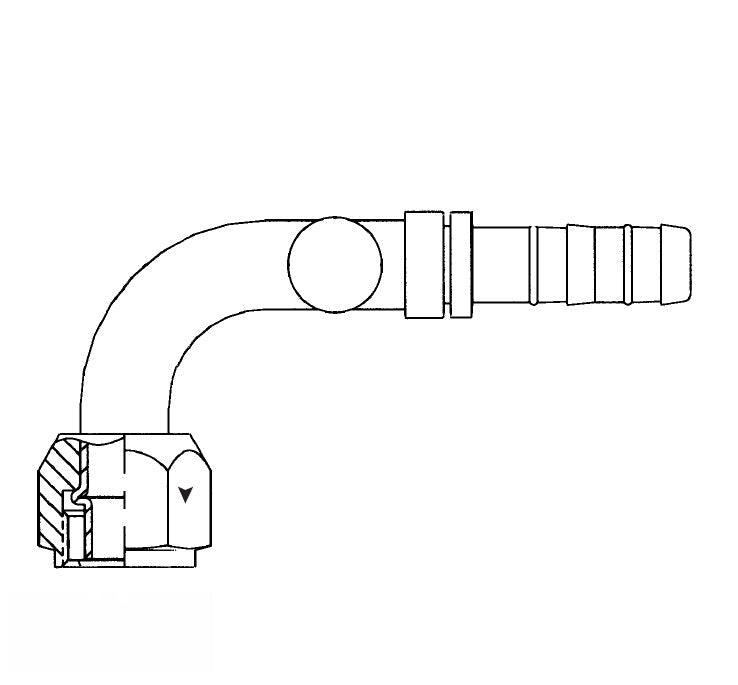

FJ3444-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) - 90° Port Rotation | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel

FJ3444-1010S E-Z Clip System by Danfoss | Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) - 90° Port Rotation | A/C Refrigeration Fitting | -10 Female O-Ring Long Pilot x -10 Hose Barb | Steel

Sale price$98.00

Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring 90° Elbow (Long Pilot) with Charge Port (7/16-20 thd) - 90° Port Rotation - 90° Elbow

O-Ring Not Included. Clips & Cages Sold Separately.

For use with GH001 EverCool A/C & Refrigeration Hose.
Buy More, Save More!
Quantity Price Each
5–19 $92.12
20–59 $83.30
60+ $73.50
Discounts applied in cart/checkout.
Additional Information:
Steel
Part Number		 Thread
"T" 		Hose Size A Ref. D Ref. F Ref. H Ref. Ref.

 Clip & Cage Kit
(Required)		 O-Ring Options
Neoprene Green HNBR
FJ3444-1010S 7/8-14 -10 4.03" 2.48" 0.50" 1.69" 1.06" FF14173 22546-15 FF90178-15

Product Data:

Brand:
  • E-Z Clip
Shape:

90 Degree

Ends Configuration:
  • 5/8in Female O-Ring Long Pilot
  • 5/8in Hose Barb

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
