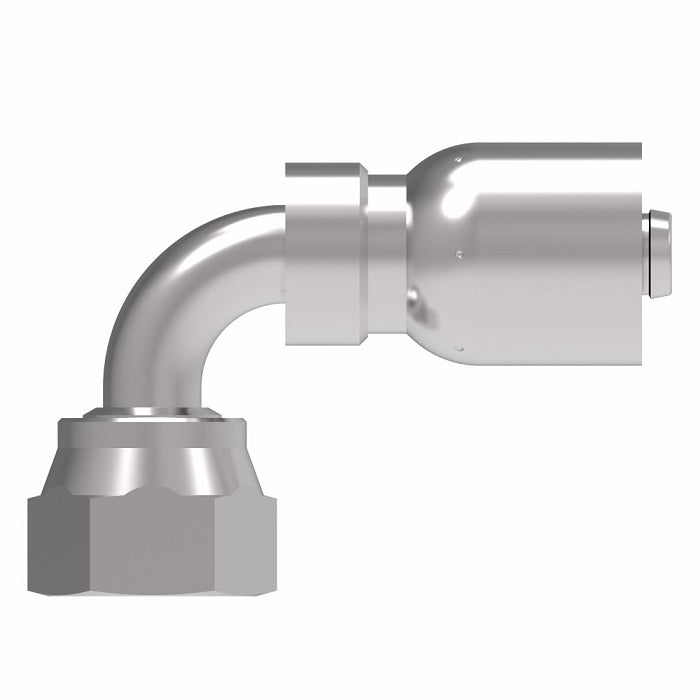

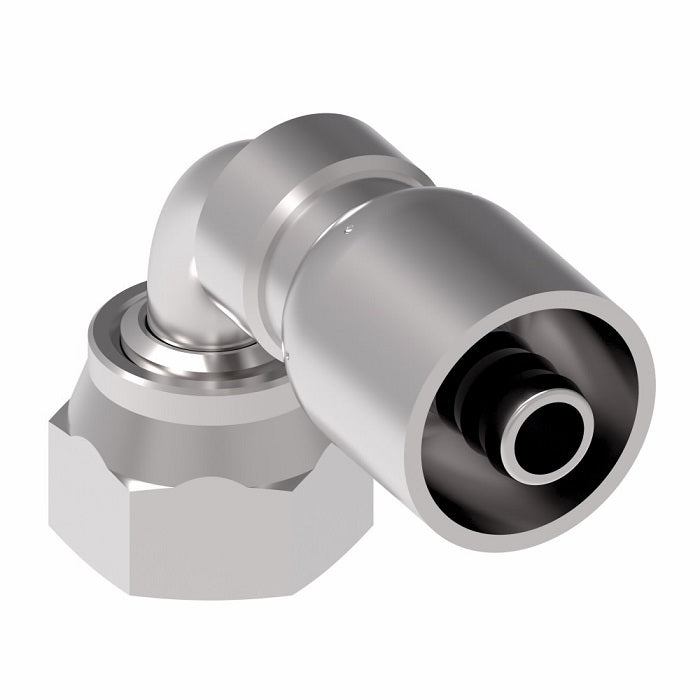

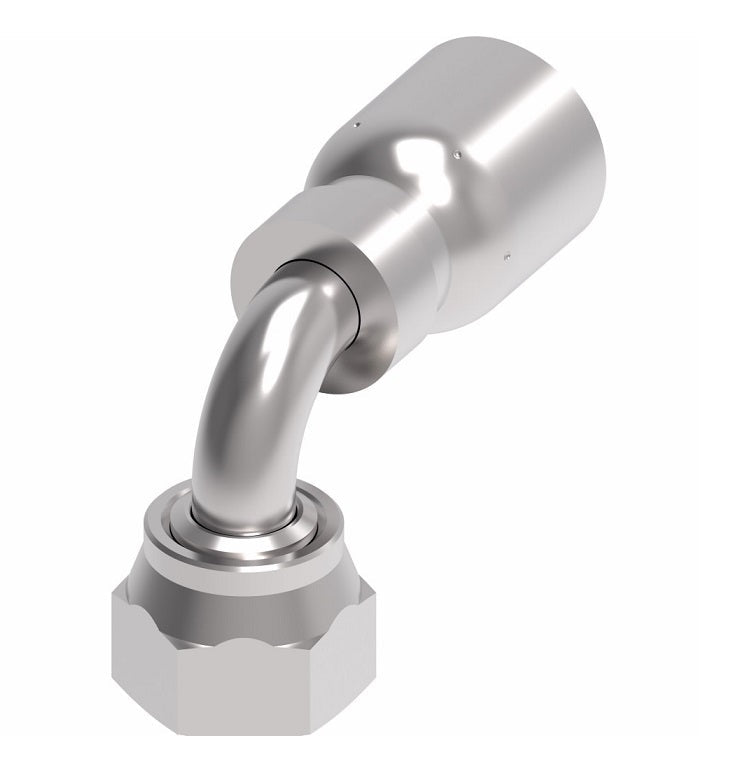

FJ3255-0404S Aeroquip by Danfoss | Female ORS Swivel 90° Elbow 100R5 Crimp Fitting | FJ Series | -04 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel
Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $24.12 |
| 40–79 | $21.81 |
| 80+ | $19.25 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3255-0404S | -04 | 9/16-18 | 1.61" | 0.83" | 0.84" | 0.69" |
| FJ3255-0406S | -06 | 9/16-18 | 1.72" | 0.93" | 0.84" | 0.69" |
| FJ3255-0606S | -06 | 11/16-16 | 1.84" | 1.05" | 0.91" | 0.81" |
| FJ3255-0806S | -06 | 11/16-16 | 2.06" | 1.27" | 1.15" | 0.94" |
| FJ3255-0608S | -08 | 11/16-16 | 1.86" | 1.07" | 0.94" | 0.81" |
| FJ3255-0808S | -08 | 13/16-16 | 2.07" | 1.27" | 1.15" | 0.94" |
| FJ3255-0810S | -10 | 13/16-16 | 2.18" | 1.30" | 1.17" | 0.94" |
| FJ3255-1010S | -10 | 1-14 | 2.30" | 1.42" | 1.31" | 1.13" |
| FJ3255-1210S | -10 | 1-3/16-12 | 2.80" | 1.91" | 1.93" | 1.38" |
| FJ3255-1212S | -12 | 1-3/16-12 | 2.78" | 1.90" | 1.90" | 1.38" |
| FJ3255-1612S | -12 | - | - | - | - | - |
| FJ3255-1616S | -16 | 1-7/16-12 | 3.19" | 2.20" | 2.22" | 1.63" |
| FJ3255-2020S | -20 | 1-11/16-12 | 3.65" | 2.47" | 2.50" | 1.88" |
