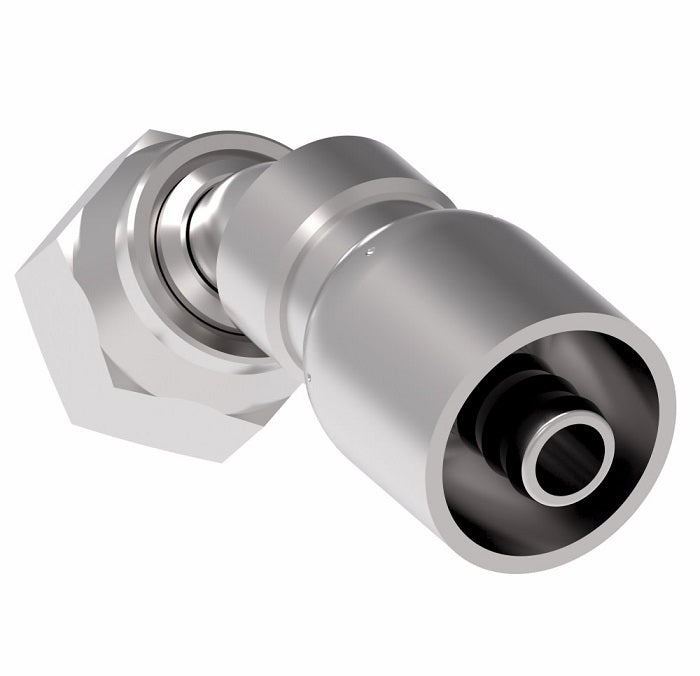

FJ3254-1212S Aeroquip by Danfoss | Female ORS Swivel 45° Elbow 100R5 Crimp Fitting | FJ Series | -12 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female ORS Swivel - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.52 |
| 40–79 | $31.21 |
| 80+ | $27.54 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | H | Hex |
| FJ3254-0404S | -04 | 9/16-18 | 1.83" | 1.05" | 0.44" | 0.69" |
| FJ3254-0608S | -08 | 11/16-16 | - | - | - | - |
| FJ3254-0606S | -06 | 11/16-16 | 1.99" | 1.19" | 0.44" | 0.81" |
| FJ3254-0808S | -08 | 13/16-16 | 2.34" | 1.54" | 0.59" | 0.94" |
| FJ3254-0810S | -10 | 13/16-16 | 2.45" | 1.57" | 0.59" | 0.94" |
| FJ3254-1010S | -10 | 1-14 | 2.65" | 1.77" | 0.69" | 1.13" |
| FJ3254-1210S | -10 | 1-3/16-12 | 2.91" | 2.03" | 0.85" | 1.38" |
| FJ3254-1212S | -12 | 1-3/16-12 | 2.88" | 1.99" | 0.83" | 1.38" |
| FJ3254-1612S | -12 | 1-7/16-12 | - | - | - | - |
| FJ3254-1616S | -16 | 1-7/16-12 | 3.25" | 2.27" | 0.95" | 1.63" |
