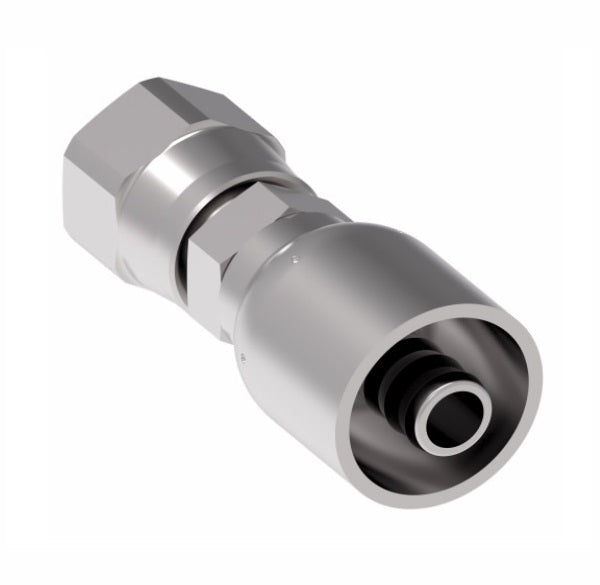

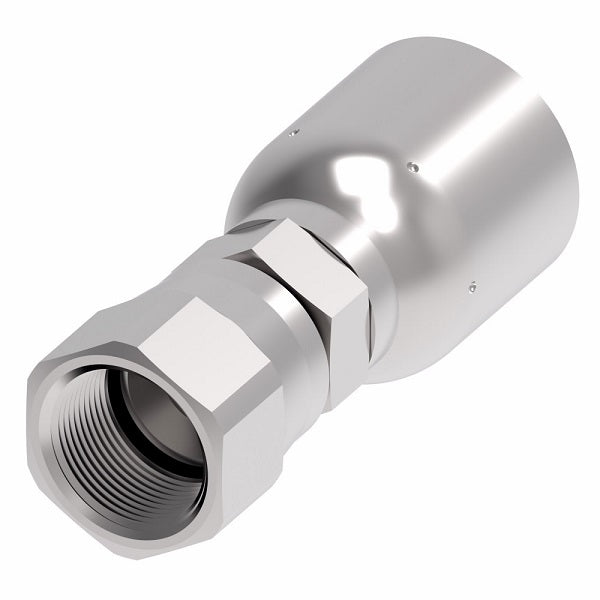

FJ3114-0404S Aeroquip by Danfoss | Female 37° JIC Swivel 100R5 Crimp Fitting | FJ Series | -04 Female 37° JIC Swivel x -04 Hose Barb | Steel
Aeroquip® by Danfoss
Truck and Fuel 100R5 Crimp Fitting - FJ Series - Female 37° JIC Swivel - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $9.78 |
| 40–79 | $8.84 |
| 80+ | $7.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | Hex |
| FJ3114-0404S | -04 | 7/16-20 | 1.88" | 1.10" | 0.56" |
| FJ3114-0604S | -04 | 9/16-18 | 2.03" | 1.25" | 0.69" |
| FJ3114-0405S | -05 | 7/16-20 | 1.89" | 1.10" | 0.56" |
| FJ3114-0505S | -05 | 1/2-20 | 1.94" | 1.15" | 0.05" |
| FJ3114-0606S | -06 | 9/16-18 | 2.04" | 1.25" | 0.69" |
| FJ3114-0806S | -06 | 3/4-16 | 2.14" | 1.35" | 0.88" |
| FJ3114-0608S | -08 | 9/16-18 | 2.12" | 1.32" | 0.69" |
| FJ3114-0808S | -08 | 3/4-16 | 2.15" | 1.35" | 0.88" |
| FJ3114-1008S | -08 | 7/18-14 | 2.32" | 1.53" | 1.00" |
| FJ3114-0810S | -10 | 3/4-16 | 2.29" | 1.41" | 0.88" |
| FJ3114-1010S | -10 | 7/8-14 | 2.41" | 1.53" | 1.00" |
| FJ3114-1012S | -12 | 7/18-14 | 2.44" | 1.54" | 1.00" |
| FJ3114-1210S | -10 | 1-1/16-12 | 2.45" | 1.55" | 1.00" |
| FJ3114-1212S | -12 | 1-1/16-12 | 2.43" | 1.55" | 1.25" |
| FJ3114-1216S | -16 | 1-1/16-12 | 2.79" | 1.80" | 1.25" |
| FJ3114-1616S | -16 | 1-5/16-12 | 2.77" | 1.73" | 1.50" |
| FJ3114-2020S | -20 | 1-5/8-12 | 2.97" | 1.79" | 2.00" |
| FJ3114-2424S | -24 | 1-5/8-12 | 3.28" | 1.79" | 2.00" |
| FJ3114-3232S | -24 | 1-7/8-12 | 3.43" | 1.94" | 2.25" |
