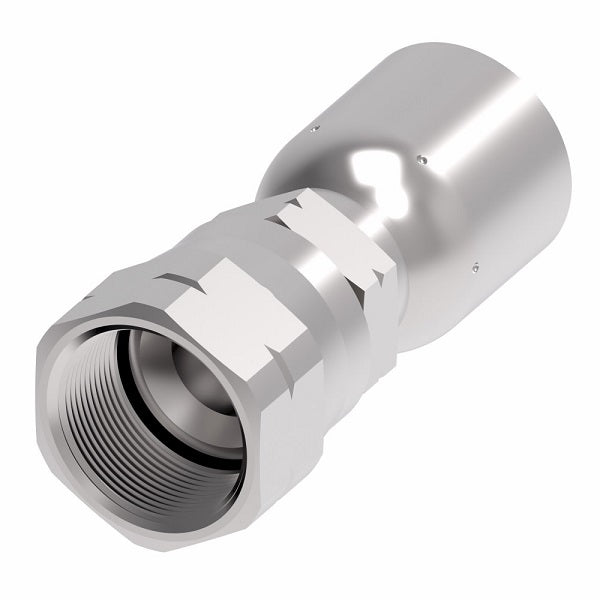

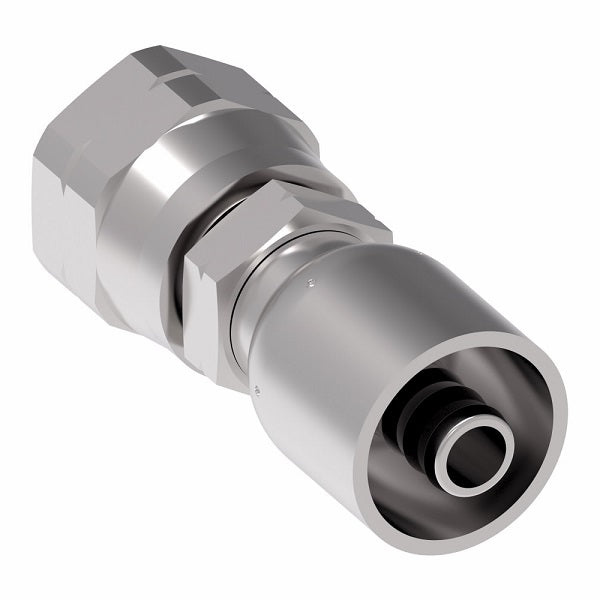

FJ3094-1010S Aeroquip by Danfoss | Female SAE 45° Swivel 100R5 Crimp Fitting | FJ Series | -10 Female SAE 45° Swivel x -10 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | Hex |
| FJ3094-0404S | -04 | 7/16-20 | 1.88" | 1.10" | 0.56" |
| FJ3094-0405S | -05 | 7/16-20 | 1.94" | 1.15" | 0.56" |
| FJ3094-0505S | -05 | 1/2-20 | 2.09" | 1.13" | 0.62" |
| FJ3094-0606S | -06 | 5/8-18 | 2.07" | 1.28" | 0.75" |
| FJ3094-0806S | -06 | 3/4-16 | 2.41" | 1.32" | 0.88" |
| FJ3094-0808S | -08 | 3/4-16 | 2.15" | 1.35" | 0.88" |
| FJ3094-1010S | -10 | 7/8-14 | 2.41" | 1.53" | 1.00" |
| FJ3094-1012S | -12 | 7/18-14 | 2.69" | 1.43" | 1.00" |
| FJ3094-1212S | -12 | 1-1/16-14 | 2.43" | 1.55" | 1.25" |
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
