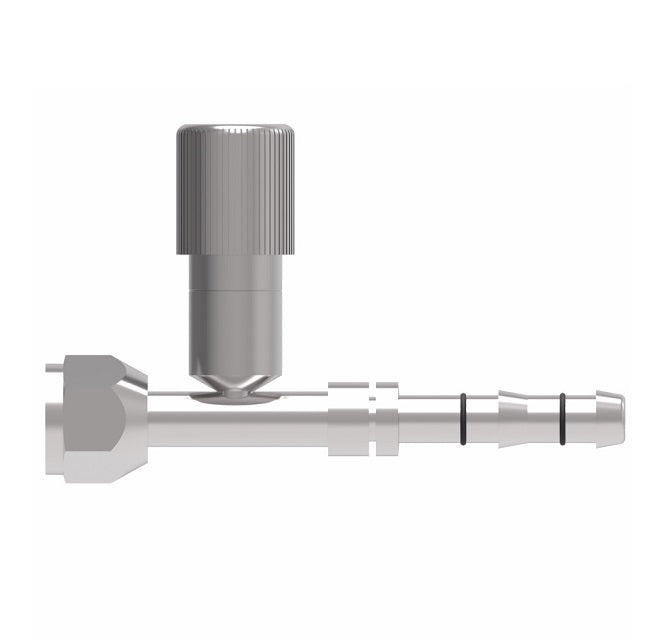

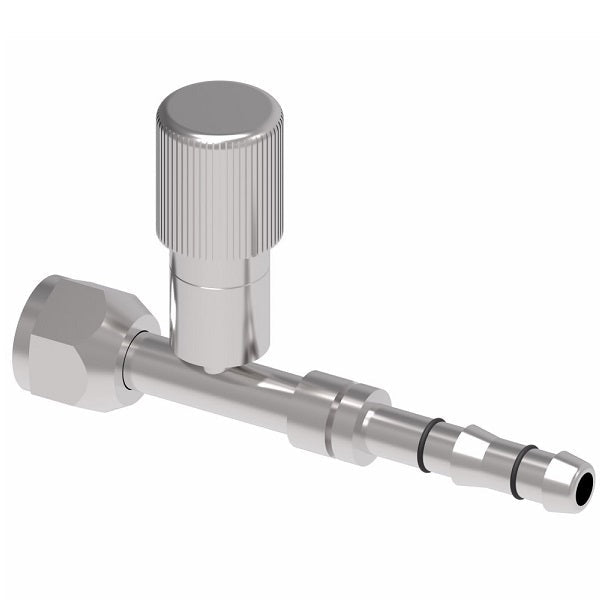

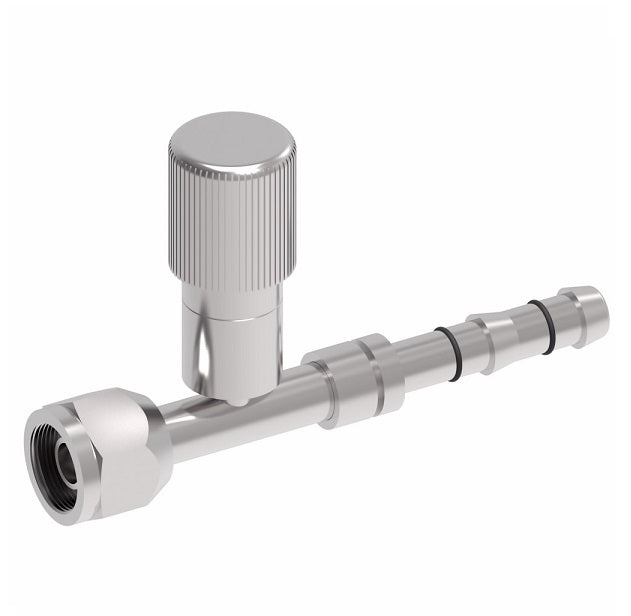

FJ3054-1216S E-Z Clip System by Danfoss | Female O-Ring (Short Pilot) with R134a Low Side Port | A/C Refrigeration Fitting | -12 Female O-Ring Short Pilot x -16 Hose Barb | Steel
Danfoss A/C & Refrigeration
E-Z Clip System - Female O-Ring Straight (Short Pilot) with R134a Low Side Port - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $50.70 |
| 40–79 | $45.85 |
| 80+ | $40.46 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | F Ref. | Ref. |
Clip & Cage Kit (Required) |
O-Ring Options | |
| Neoprene | Green HNBR | ||||||||
| FJ3054-1010S | 7/8-14 | -10 | 4.24" | 2.25" | 0.63" | 1.06" | FF14173 | 22546-15 | FF90178-15 |
| FJ3054-1012S | 7/8-14 | -12 | 4.27" | 2.25" | 0.63" | 1.06" | FF14174 | 22546-15 | FF90178-15 |
| FJ3054-1016S | 7/8-14 | -16 | 4.42" | 2.30" | 0.63" | 1.06" | FF14401 | 22546-15 | FF90178-15 |
| FJ3054-1212S | 1-1/16-14 | -12 | 4.58" | 2.43" | 0.54" | 1.25" | FF14174 | 22546-17 | FF90178-17 |
| FJ3054-1216S | 1-1/16-14 | -16 | 4.68" | 2.43" | 0.54" | 1.25" | FF14401 | 22546-17 | FF90178-17 |
