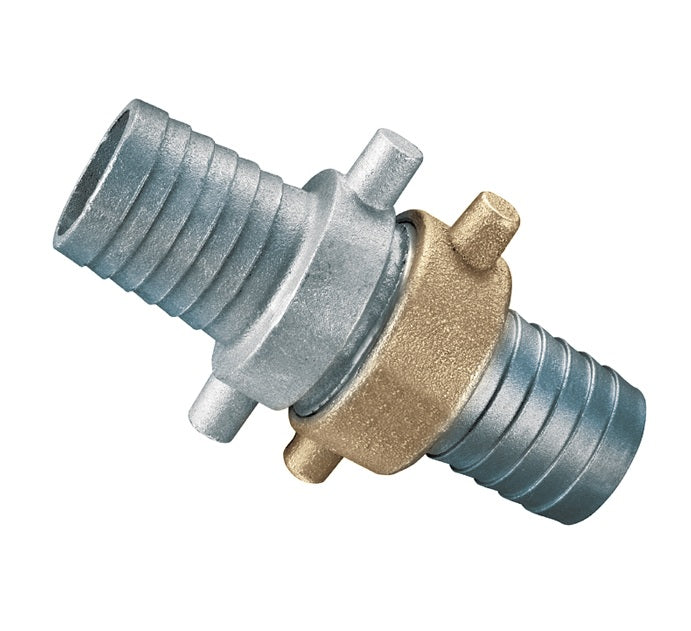

FHNST250 by Kuriyama | FHNST Series | Pin Lug Coupling | Complete Set | NST Threads | 2-1/2" Hose Barb x 2-1/2" Hose Barb | Aluminum with Brass Swivel Nut

FHNST250 by Kuriyama | FHNST Series | Pin Lug Coupling | Complete Set | NST Threads | 2-1/2" Hose Barb x 2-1/2" Hose Barb | Aluminum with Brass Swivel Nut

Sale price$46.93

Kuriyama of America Inc.
FHNST Series | Pin Lug Coupling | Complete Set | NST Threads | Hose Barb x Hose Barb | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.
Buy More, Save More!
Quantity Price Each
10–39 $44.11
40–79 $39.89
80+ $35.20
Discounts applied in cart/checkout.

What are the Features?

  • Versatile threaded hose connectors designed for suction and discharge applications.
  • Male ends supplied with NST threads (National Fire Hose Straight Threads).
  • Cylindrical studs or “pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.
  • Replacement gaskets for all versions of the pin lug couplings with NST threads.

What are the Materials?

  • ASTM B108-92 356 aluminum alloy.
  • ASTM B283 Grade C37700 brass alloy.
  • Gasket Material: Buna-N.
  • Gasket Temperature Rating: -40°F (-40°C) to +250°F (+121°C).
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
FHNST150 1-1/2" 75 PSI 0.43lbs
FHNST250 2-1/2" 50 PSI 1.04lbs

Product Data:

Series:
  • FHNST Series
MAWP:

50

Shape:

Straight

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
