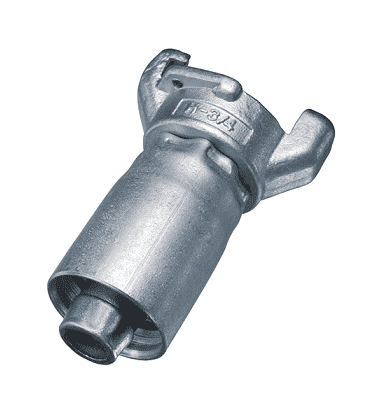

FHE-75 by Kuriyama | Two Lug Universal Air Hose Coupling with Crimp Ferrule | 3/4" | OD 1-1/16" | 1-11/32" | 150 PSI | Zinc Plated Steel

FHE-75 by Kuriyama | Two Lug Universal Air Hose Coupling with Crimp Ferrule | 3/4" | OD 1-1/16" | 1-11/32" | 150 PSI | Zinc Plated Steel

Sale price$16.46

Kuriyama Couplings™ - Universal Air Hose Couplings - Two Lug Hose Coupling with Crimp Ferrule - Zinc Plated Steel

Buy More, Save More!
Quantity Price Each
10–39 $15.47
40–79 $13.99
80+ $12.35
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Hose Barb
  • 2-Lug Chicago
Material(s):
  • Zink-Plated Steel
Applications:
Features:
  • Note: For safety purposes, use of lanyard and safety clip (supplied with hose ends) is recommended with all Universal Air Hose Couplings.
  • All Universal Air Hose Couplings are investment cast steel for better dimensional precision, with machined threads and recessed gasket seat area.
  • WARNING: Not to be used for steam service
  • PSI Rating @ 70 deg. F (+21 deg. C) for 1/4" - 2": 150 PSI
Materials:
  • Zinc Plated Steel
Part Number Hose Size (in.) Hose OD (in.) Weight (Lbs.)
FHE-50 1/2" 27/32" - 1-1/32" 0.50 lbs
FHE-75 3/4" 1-1/16" - 1-11/32" 0.60 lbs
FHE-100 1" 1-9/32" - 1-17/32" 0.66 lbs
FHE-101 1" 1-15/32" - 1-23/32" 0.64 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
