FFX90M-08-08 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Medium Drop Elbow | Swivel | for 1/2" Hose ID

FFX90M-08-08 by Kurt Hydraulics | Female O-Ring Face Seal | 90° Medium Drop Elbow | Swivel | for 1/2" Hose ID

Sale price$21.83

by Kurt Hydraulics
FFX90M - O-Ring Face Seal 90 deg. Medium Drop Female Swivel

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $20.52
40–79 $18.56
80+ $16.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • Braided Coupling Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 1/2in Female O-Ring Face Seal

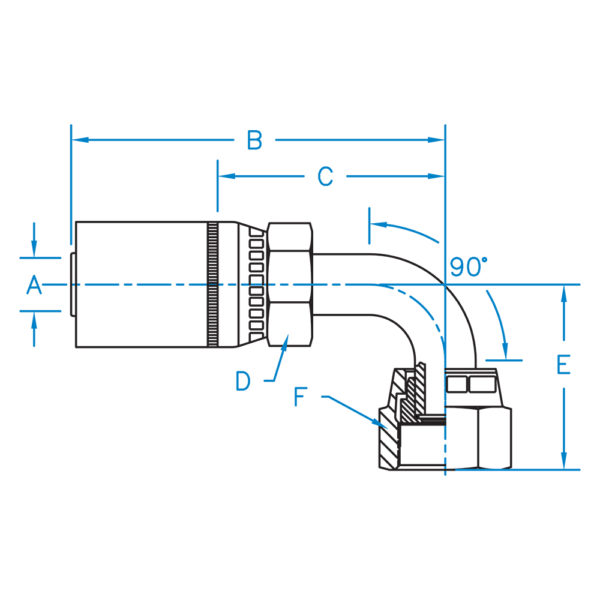

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90M-04-04 0.250 2.323 1.068 5/8 1.260 11/16 1/4" 9/16-18
FFX90M-06-06 0.375 2.743 1.243 11/16 1.500 13/16 3/8" 11/16-16
FFX90M-08-08 0.500 3.043 1.355 7/8 1.610 15/16 1/2" 13/16-16
FFX90M-10-10 0.625 3.05 1.55 1-1/16 1.850 1-1/8 5/8" 1-14
FFX90M-12-12 0.750 3.777 1.897 1-1/8 2.280 1-3/8 3/4" 1-3/16-12
FFX90M-16-16 1.000 4.167 2.433 1-3/8 2.770 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
