FFX90L-06-08-K2 by Kurt Hydraulic | K2 Series | 3/8" Hose Barb x 1/2" Female O-Ring Face Seal Swivel | Long Drop | 90° Elbow | Carbon Steel
Kurt Hydraulics
FFX90L - O-Ring Face Seal 90° Long Drop Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $55.99 |
| 40–79 | $50.63 |
| 80+ | $44.67 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

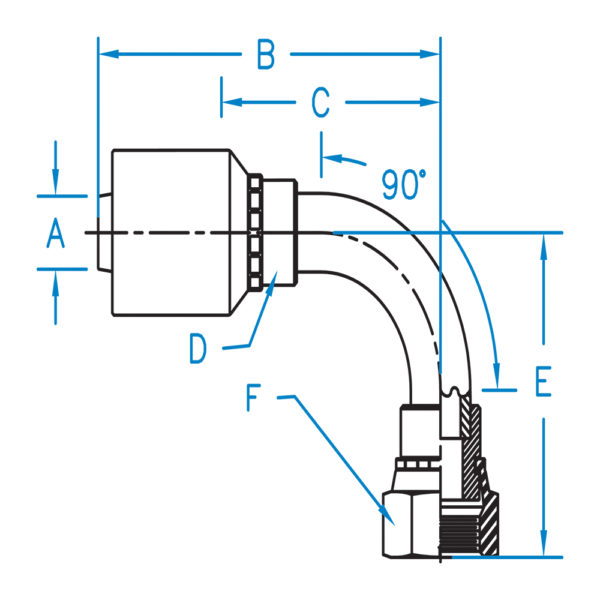

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FFX90L-04-04-K2 | 1/4" | 2.70" | 1.64" | 5/8" | 1.81" | 11/16" | 9/16 – 18 |
| FFX90L-06-06-K2 | 3/8" | 3.17" | 1.80" | 13/16" | 2.13" | 13/16" | 11/16 – 16 |
| FFX90L-06-08-K2 | 3/8" | 3.47" | 2.10" | 3/4" | 2.52" | 15/16" | 13/16 – 16 |
| FFX90L-08-08-K2 | 1/2" | 3.49" | 2.15" | 15/16" | 2.52" | 15/16" | 13/16 – 16 |
| FFX90L-08-10-K2 | 1/2" | 2.95" | 1.61" | 7/8" | 2.78" | 1-1/8" | 1 – 14 |
