FFX90-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | 90° Elbow | Female O-Ring Face Seal | Swivel | for 1" Hose ID

FFX90-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | 90° Elbow | Female O-Ring Face Seal | Swivel | for 1" Hose ID

Sale price$66.81

by Kurt Hydraulics
FFX90-WHP - O-Ring Face Seal 90 deg. Bent Tube Female Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $62.80
40–79 $56.79
80+ $50.11
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

90 Degree

Ends Configuration:
  • 1in Hose Barb
  • 1in Female O-Ring Face Seal

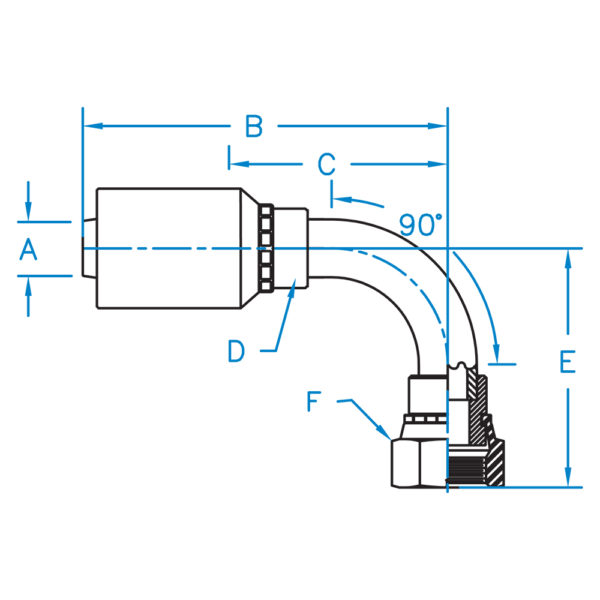

Part Number A B C D E F Hose ID
(In)		 Thread
FFX90-12-12-WHP 0.750 5.020 2.590 1-3/16R 1.881 1-3/8 3/4" 1-3/16-12
FFX90-16-16-WHP 1.000 5.579 3.049 1-7/16R 2.210 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
