FFX90-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female O-Ring Face Seal Swivel | 90° Elbow | Carbon Steel
Kurt Hydraulics
O-Ring Face Seal 90° Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $30.44 |
| 40–79 | $27.52 |
| 80+ | $24.29 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:

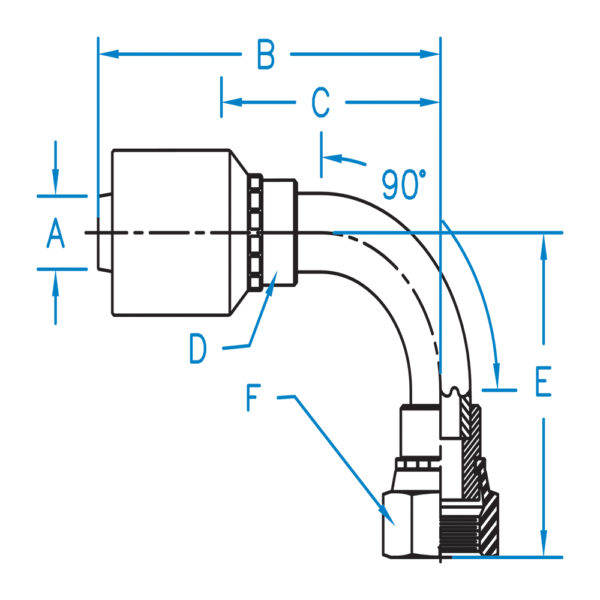

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FFX90-04-04-K2 | 1/4" | 2.70" | 1.64" | 11/16" | 0.82" | 11/16" | 9/16"-18 |
| FFX90-04-06-K2 | 1/4" | 3.43" | 1.78" | 13/16" | 0.91" | 13/16" | 11/16"-16 |
| FFX90-04-08-K2 | 1/4" | 2.79" | 1.73" | 15/16" | 1.14" | 15/16" | 13/16"-16 |
| FFX90-06-04-K2 | 3/8" | 3.03" | 1.66" | 11/16" | 0.82" | 11/16" | 9/16"-18 |
| FFX90-06-06-K2 | 3/8" | 3.17" | 1.80" | 13/16" | 0.90" | 13/16" | 11/16"-16 |
| FFX90-06-08-K2 | 3/8" | 3.03" | 1.66" | 15/16" | 1.14" | 15/16" | 13/16"-16 |
| FFX90-08-06-K2 | 1/2" | 3.19" | 1.85" | 3/4" | 0.91" | 13/16" | 11/16"-16 |
| FFX90-08-08-K2 | 1/2" | 2.68" | 1.71" | 15/16" | 1.14" | 15/16" | 13/16"-16 |
| FFX90-08-10-K2 | 1/2" | 2.95" | 1.61" | 1-1/8" | 1.26" | 1-1/8" | 1"-14 |
| FFX90-08-12-K2 | 1/2" | 3.87" | 2.56" | 1-3/8" | 1.88" | 1-3/8" | 1-3/16"-12 |
