FFX45-08-06-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/8" Female O-Ring Face Seal Swivel | 45° Elbow | Carbon Steel
Kurt Hydraulics
O-Ring Face Seal 45° Bent Tube Female Swivel
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $18.23 |
| 40–79 | $16.48 |
| 80+ | $14.54 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:

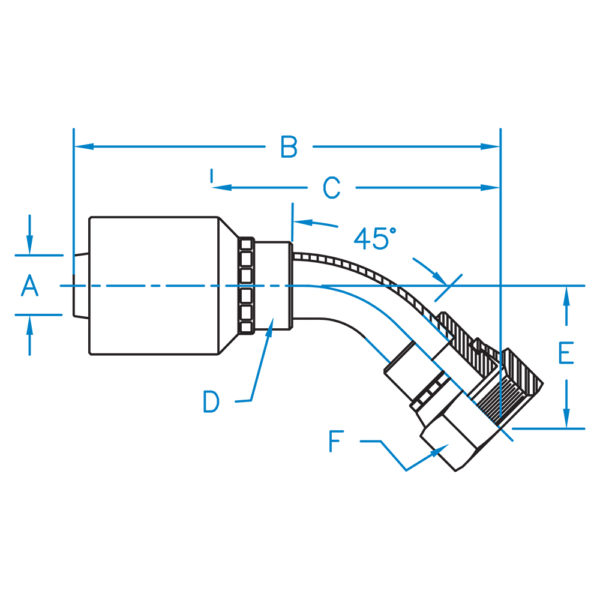

| Part Number | Hose I.D. (in.) | B | C | D | E | F | Thread |
|---|---|---|---|---|---|---|---|
| FFX45-04-04-K2 | 1/4" | 2.86" | 1.80" | 5/8" | 0.44" | 11/16" | 9/16"-18 |
| FFX45-04-06-K2 | 1/4" | 2.81" | 1.75" | 5/8" | 0.44" | 5/8" | 11/16"-16 |
| FFX45-06-06-K2 | 3/8" | 3.29" | 1.92" | 3/4" | 0.43" | 13/16" | 11/16"-16 |
| FFX45-06-08-K2 | 3/8" | 3.22" | 1.85" | 3/4" | 0.59" | 15/16" | 13/16"-16 |
| FFX45-08-06-K2 | 1/2" | 3.31" | 1.97" | 3/4" | 0.43" | 13/16" | 11/16"-16 |
| FFX45-08-08-K2 | 1/2" | 3.24" | 1.90" | 7/8" | 0.59" | 15/16" | 13/16"-16 |
| FFX45-08-10-K2 | 1/2" | 3.43" | 2.09" | 7/8" | 0.63" | 1-1/8" | 1"-14 |
| FFX45-08-12-K2 | 1/2" | 3.48" | 2.14" | 1" | 0.83" | 1-3/8" | 1-3/16"-12 |
