FFX-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/4" Hose ID

FFX-20-20-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | Female O-Ring Face Seal | Swivel | for 1-1/4" Hose ID

Sale price$64.42

by Kurt Hydraulics
FFX-JJ - O-Ring Face Seal Female Swivel - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $60.55
40–79 $54.76
80+ $48.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • JJ Series
Shape:

Straight

Ends Configuration:
  • 1-1/4in Hose Barb
  • 1-1/4in Female O-Ring Face Seal

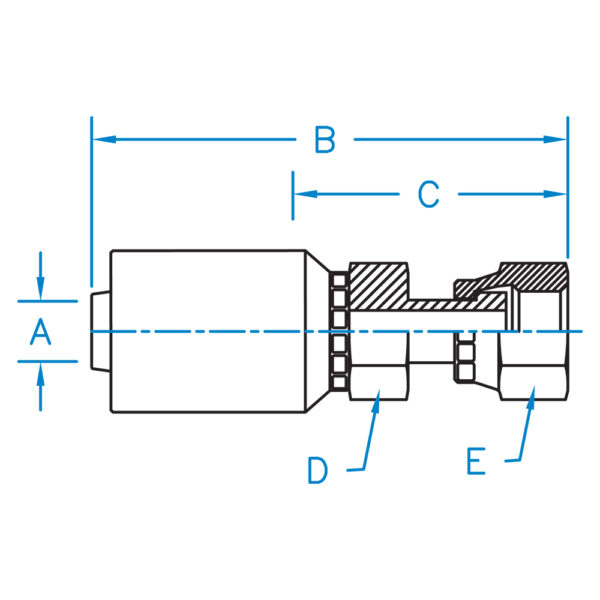

Part Number A B C D E Hose ID
(In)		 Thread
FFX-20-20-JJ 1.250 4.450 1.850 1-13/16 1-7/8 1-1/4" 1-11/16 - 12
FFX-24-24-JJ 1.500 4.840 2.123 2-1/4 2-1/4 1-1/2" 2 - 12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
