FFX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | Swivel | for 1" Hose ID

FFX-16-16-WHP by Kurt Hydraulics | Ultra High Pressure Non Skive | Female O-Ring Face Seal | Swivel | for 1" Hose ID

Sale price$50.47

by Kurt Hydraulics
FFX-WHP - O-Ring Face Seal Female Swivel - Ultra High Pressure Non Skive

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $47.44
40–79 $42.90
80+ $37.85
Discounts applied in cart/checkout.

Product Data:

Series:
  • WHP Series
Shape:

Straight

Ends Configuration:
  • 1in Hose Barb
  • 1in Female O-Ring Face Seal

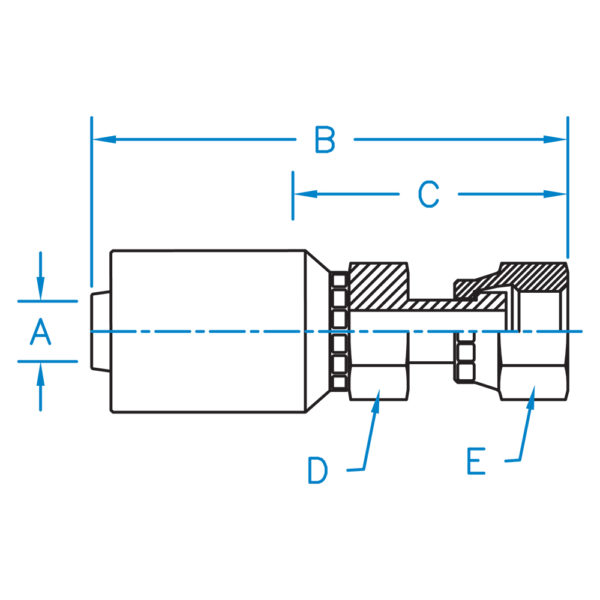

Part Number A B C D E Hose ID
(In)		 Thread
FFX-12-12-WHP 0.750 4.100 1.670 1-1/8 1-3/8 3/4" 1-3/16-12
FFX-16-16-WHP 1 4.445 1.915 1-3/8 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
