FFX-08-12-SST by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 1/2" Hose ID

FFX-08-12-SST by Kurt Hydraulics | Jump Size | Female O-Ring Face Seal | Swivel | PTFE Coupling | for 1/2" Hose ID

Sale price$22.56

by Kurt Hydraulics
FFX-SST - O-Face Seal Female Swivel - PTFE Couplings

Kurt Fittings and Hose should only be used together.
Buy More, Save More!
Quantity Price Each
10–39 $21.21
40–79 $19.18
80+ $16.92
Discounts applied in cart/checkout.

Product Data:

Series:
  • SST Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 3/4in Female O-Ring Face Seal

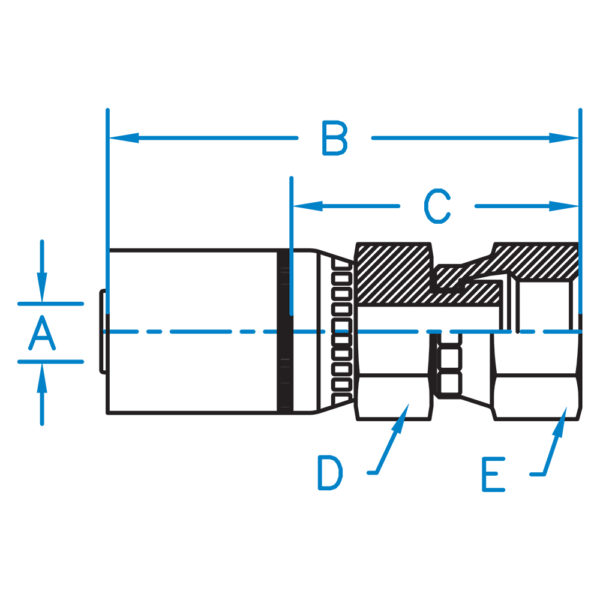

Part Number A B C D E Hose ID
(In)		 Thread
FFX-04-04-SST 0.250 2.597 1.517 9/16 11/16 1/4" 9/16-18
FFX-04-06-SST 0.250 2.652 1.517 5/8 11/16 1/4" 11/16-16
FFX-06-06-SST 0.375 2.920 1.608 3/4 13/16 3/8" 11/16-16
FFX-06-08-SST 0.375 3.216 1.720 7/8 15/16 3/8" 13/16-16
FFX-08-08-SST 0.500 3.285 1.720 7/8 15/16 1/2" 13/16-16
FFX-08-10-SST 0.500 3.285 1.720 7/8 15/16 1/2" 1-14
FFX-08-12-SST 0.500 3.352 1.954 1-1/8 1-3/8 1/2" 1-14
FFX-10-10-SST 0.625 3.285 1.720 7/8 15/16 5/8" 1-14
FFX-10-12-SST 0.625 3.710 1.954 1-1/8 1-3/8 5/8" 1-3/16-12
FFX-12-12-SST 0.750 3.710 1.954 1-1/8 1-3/8 3/4" 1-3/16-12
FFX-16-16-SST 1.000 4.360 2.110 1-3/8 1-5/8 1.000" 1-7/16-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
