FFX-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female O-Ring Face Seal Swivel | Carbon Steel

FFX-08-12-K2 by Kurt Hydraulics | K2 Style Hydraulic Fitting | 1/2" Hose Barb x 3/4" Female O-Ring Face Seal Swivel | Carbon Steel

Sale price$24.38

Kurt Hydraulics
FFX - O-Ring Face Seal Female Swivel
Buy More, Save More!
Quantity Price Each
10–39 $22.92
40–79 $20.72
80+ $18.29
Discounts applied in cart/checkout.

Product Data:

Series:
  • K2 Series
Shape:

Straight

Ends Configuration:
  • 1/2in Hose Barb
  • 3/4in Female O-Ring Face Seal

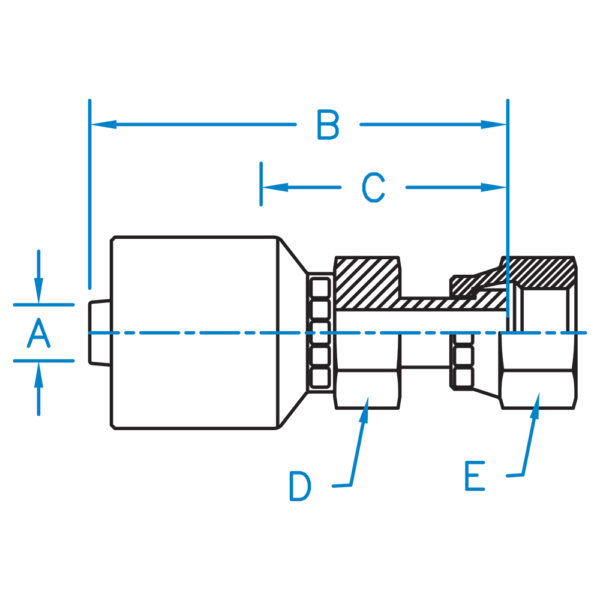

Part Number Hose I.D. (in.) B C D E Thread
FFX-04-04-K2 1/4" 2.18" 1.10" 9/16" 11/16" 9/16"-18
FFX-04-06-K2 1/4" 2.14" 1.06" 11/16" 13/16" 11/16"-16
FFX-04-08-K2 1/4" 2.28" 1.20" 3/4" 15/16" 13/16"-16
FFX-06-04-K2 3/8" 2.64" 1.27" 11/16" 11/16" 9/16"-18
FFX-06-06-K2 3/8" 2.43" 1.20" 11/16" 7/8" 11/16"-16
FFX-06-08-K2 3/8" 2.61" 1.24" 3/4" 15/16" 13/16"-16
FFX-08-06-K2 1/2" 2.47" 1.13" 11/16" 11/16" 11/16"-16
FFX-08-08-K2 1/2" 2.77" 1.43" 7/8" 1-1/16" 13/16"-16
FFX-08-10-K2 1/2" 2.86" 1.52" 15/16" 1-1/8" 1"-14
FFX-08-12-K2 1/2" 2.95" 1.61" 1-1/8" 1-3/8" 1-3/16"-12

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
