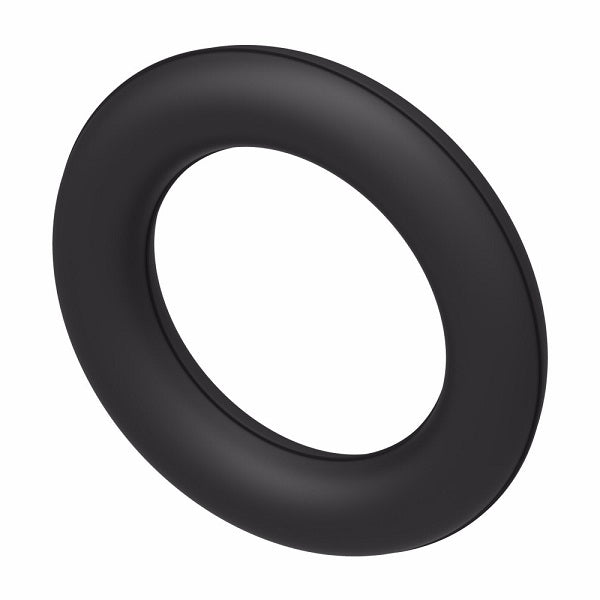

FF9446-12 Aeroquip by Danfoss | -06 Buna-N (Nitrile) O-Ring for SAE O-Ring Face Seal Fittings (ORS) | Weatherhead Part #: 4629X6
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
O-Ring for SAE O-Ring Face Seal Fittings (ORS)
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $0.47 |
| 40–79 | $0.43 |
| 80+ | $0.38 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Seal Material(s):
| Technical Info: | |||
|---|---|---|---|
| O-Ring Base Part Number |
Material | Operating Temperature range |
|---|---|---|
| FF9446- (Standard) |
Buna-N Nitrile rubber 90 Durometer |
-40°F to +250°F (-40°C to +121°C) |
| 22033- | EPDM Ethylene propylene diene monomer |
-65°F to +212°F (-55°C to +100°C) |
| 22046- | Viton* Fluoroelastomer 90 Durometer |
-15°F to +400°F (-25°C to +205°C) |
| FF9855- | Buna-N Low temperature nitrile rubber 90 Durometer |
-65°F to +225°F (-55°C to +107°C) |
| 22546- | Neoprene 90 Durometer |
-65°F to +300°F (-55°C to +150°C) |
 |
||||||
|---|---|---|---|---|---|---|
| Buna-N (Nitrile) Part Number |
Viton Part Number |
Low Temperature Buna-N (Nitrile) Part Number |
Neoprene Part Number |
Tube Size | A | E |
|
FF9446-11 Weatherhead Part #: 4629X4 |
22046-11 | - | - | -04 | 0.301" | 0.07" |
|
FF9446-12 Weatherhead Part #: 4629X6 |
22046-12 | FF9855-12 | 22546-12 | -06 | 0.364" | 0.07" |
|
FF9446-14 Weatherhead Part #: 4629X8 |
22046-14 | FF9855-14 | 22546-14 | -08 | 0.489" | 0.07" |
|
FF9446-16 Weatherhead Part #: 4629X10 |
22046-16 | FF9855-16 | 22546-16 | -10 | 0.614" | 0.07" |
|
FF9446-18 Weatherhead Part #: 4629X12 |
22046-18 | FF9855-18 | 22546-18 | -12 | 0.739" | 0.07" |
| FF9446-19 | - | - | - | - | 0.8125" | 0.0625" |
|
FF9446-21 Weatherhead Part #: 4629X16 |
22046-21 | - | 22546-21 | -16 | 0.926" | 0.07" |
|
FF9446-25 Weatherhead Part #: 4629X20 |
22046-25 | - | 22546-25 | -20 | 1.176" | 0.07" |
|
FF9446-29 Weatherhead Part #: 4629X24 |
22046-29 | - | - | -24 | 1.489" | 0.07" |
* Viton is a trademark of The Chemours Company FC, LLC
