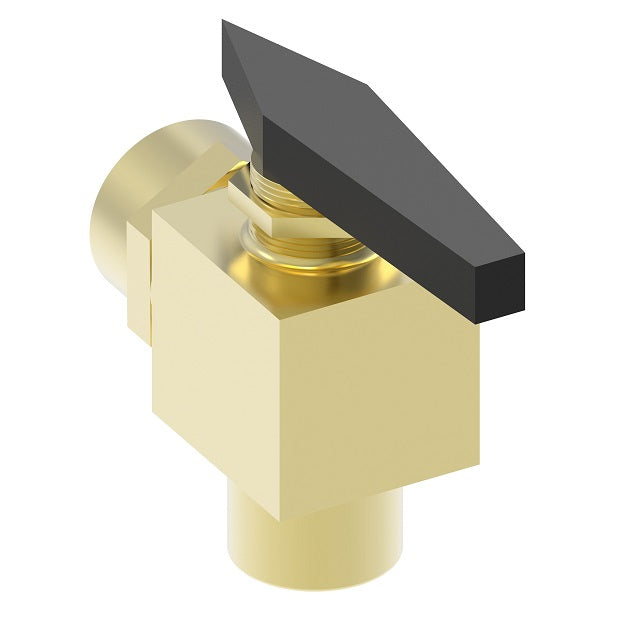

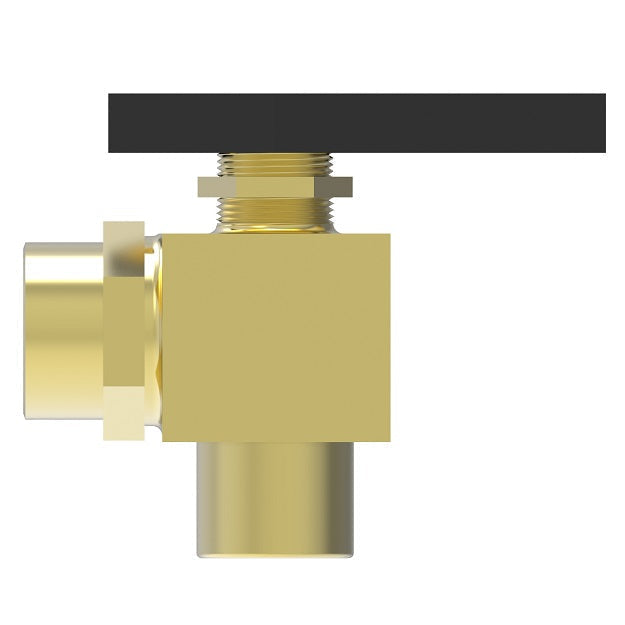

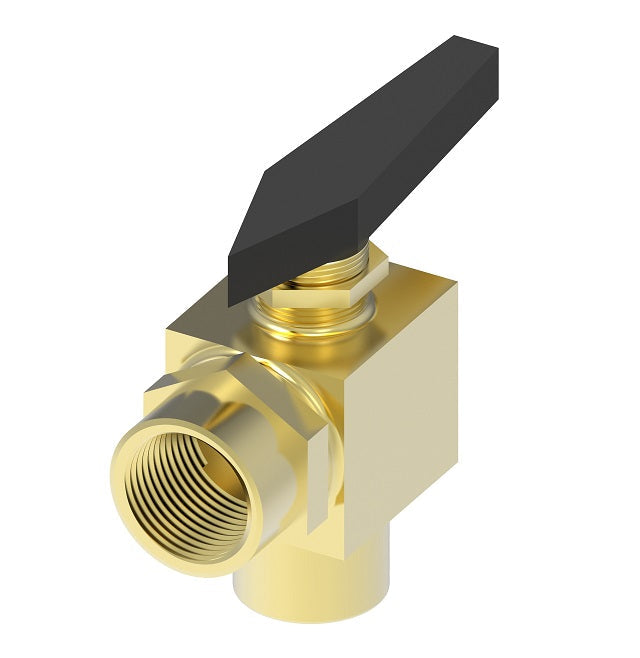

FF90595-08 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | Brass
FF90595-08 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | Brass
FF90595-08 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | Brass

FF90595-08 by Danfoss | Instrumentation 2-Way Ball Valve | 90° Elbow | 1/2" Female NPT x 1/2" Female NPT | Brass

Sale price$91.42

Aeroquip® by Danfoss
Ball Valve - Instrumentation 2-Way Ball Valve - 90° Elbow

Buy More, Save More!
Quantity Price Each
5–19 $85.93
20–59 $77.71
60+ $68.57
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Female NPT
  • 1/2in Female NPT
  • Some Ends Match
Material(s):
  • Brass
For use with:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Water service.
  • Panel mounting.
Features/Benefits:
  • Blowout proof stem.
  • Double o-ring stem seal.
  • 90º configuration eliminates fittings.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated brass ball.
  • Metal retainer seal.
  • Seals: Ball Seats = Teflon,
    Stem Seals = 2 O-Rings (Viton & Buna-N).
Pressure:
  • Working pressure: 1/8" & 1/4" = 1500 psig @ 70°F
  • 3/8" & 1/2" = 1,000 psig @ 70°F (side port inlet) 1000 psig (bottom port inlet)
Temperature Range:
  • Temperature range: -40ºF to +300ºF
Orifice Diameters:
  • 1/8" & 1/4" = .250"
  • 3/8" & 1/2" = .340"
  • Panel mount hole size: 9/16" ID
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90595-02 F x F NPT 1/8" 0.92" 0.38" 2.12"
FF90595-04 F x F NPT 1/4" 0.92" 0.38" 2.12"
FF90595-06 F x F NPT 3/8" 1.10" 0.75" 2.59"
FF90595-08 F x F NPT 1/2" 1.19" 0.75" 2.59"
FF90596-02 Compression 1/8" 0.92" 0.38" 2.12"
FF90596-06 Compression 3/8" 1.10" 0.75" 2.59"
FF90596-08 Compression 1/2" 1.19" 0.75" 2.59"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
