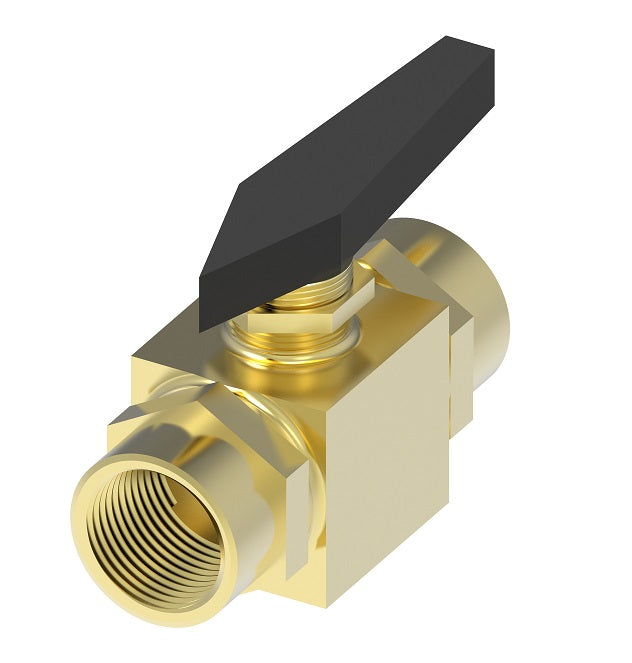

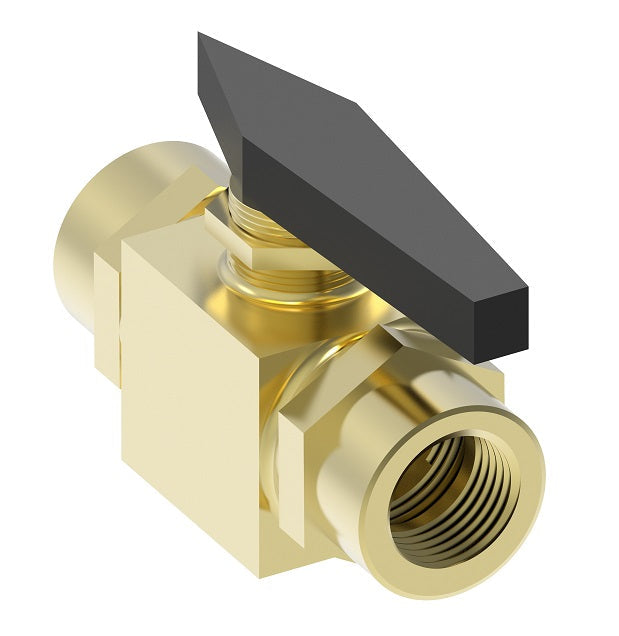

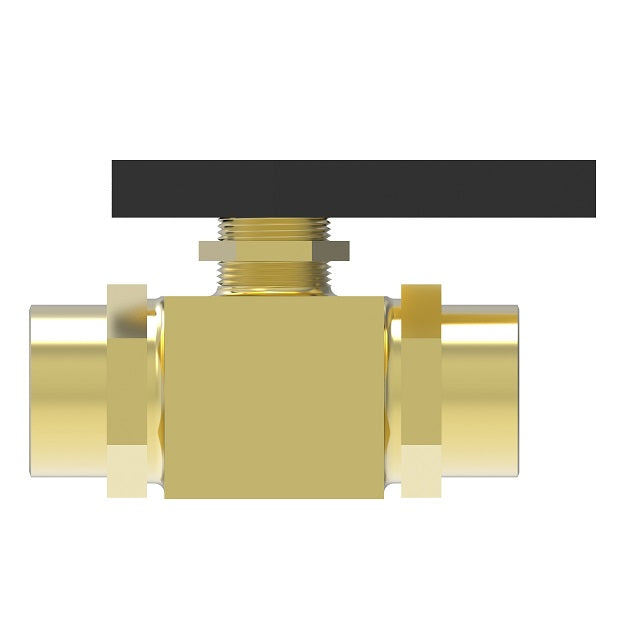

FF90593-04 by Danfoss | Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass
FF90593-04 by Danfoss | Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass
FF90593-04 by Danfoss | Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

FF90593-04 by Danfoss | Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

Sale price$58.86

Aeroquip® by Danfoss
Ball Valve - Instrumentation 2-Way Ball Valve - Straight

Buy More, Save More!
Quantity Price Each
10–39 $55.33
40–79 $50.03
80+ $44.15
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Use With:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Water service.
  • Panel mounting.
Features/Benefits:
  • Blowout proof stem.
  • Floating ball design.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Metal retainer seal.
  • Seals: Ball Seats = Teflon
    Stem Seals = 2 O-Rings (Viton & Buna-N)
Working Pressure:
  • 1/8" & 1/4" = 1500 psig @ 70°F.
  • 3/8" & 1/2" = 1000 psig @ 70°F.
Temperature Range:
  • -40°F + 300°F
Orifice Diameters:
  • 1/8" & 1/4" = 0.250"
  • 3/8" & 1/2" = 0.375"
  • Panel mount hole size: 9/16" ID
Note:
  • Not steam rated.
Brass
Part Number		 Connections Size X Y Z
FF90593-02 F x F NPT 1/8" 0.92" 0.92" 1.25"
FF90593-04 F x F NPT 1/4" 0.92" 0.92" 1.25"
FF90593-08 F x F NPT 1/2" 1.19" 1.90" 1.42"
FF90594-02 Compression 1/8" 0.92" 0.92" 1.25"
FF90594-04 Compression 1/4" 0.92" 0.92" 1.25"
FF90594-08 Compression 1/2" 1.46" 1.46" 1.42"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
