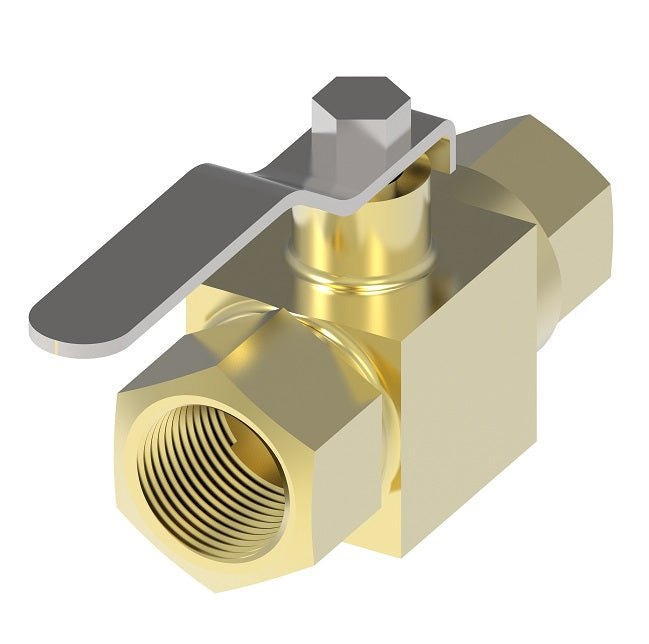

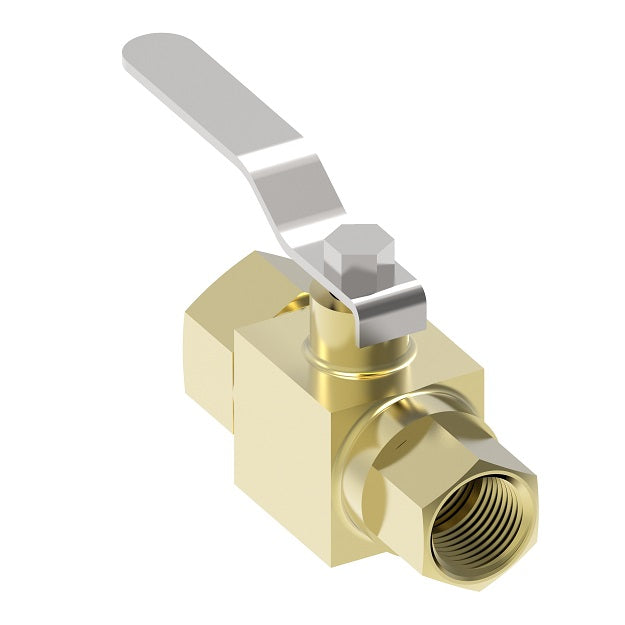

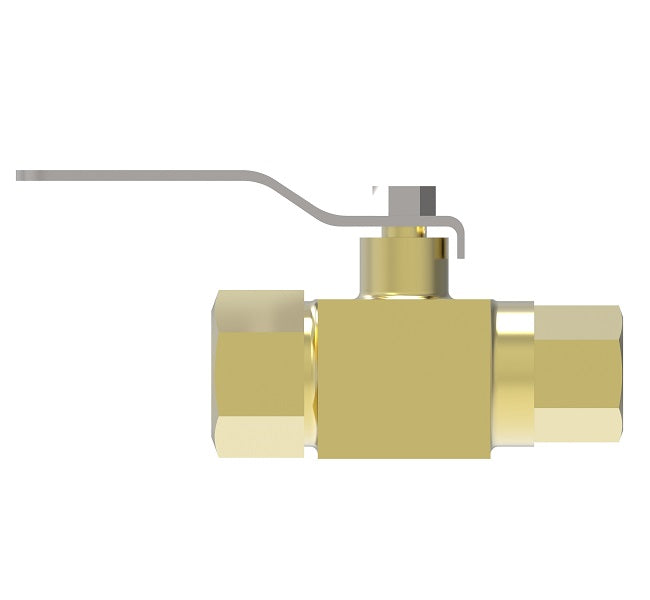

FF90592-04 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass
FF90592-04 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass
FF90592-04 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

FF90592-04 by Danfoss | Mini Instrumentation 2-Way Ball Valve | 1/4" Female NPT x 1/4" Female NPT | Brass

Sale price$23.20

Aeroquip® by Danfoss
Ball Valve - Mini Instrumentation 2-Way Ball Valve - Straight

Buy More, Save More!
Quantity Price Each
10–39 $21.81
40–79 $19.72
80+ $17.40
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/4in Female NPT
  • 1/4in Female NPT
  • Some Ends Match
Material(s):
  • Brass
Use With:
  • Water, oils and gases.
Applications:
  • Vacuum service.
  • Industrial service.
  • Coolant service.
  • Water service.
  • Compact shut off installations.
  • Low cost instrumentation.
  • Hose shut off.
Features/Benefits:
  • Blowout proof stem.
  • Floating ball design.
  • 1/4 turn - full on/off.
  • Vacuum rating: Full.
Material:
  • Brass bar stock body.
  • Nickel plated ball.
  • Viton stem seal.
  • Standard metal handle.
Pressure:
  • Working pressure: 1,000 psig WOG @ 70°F.
Temperature Range:
  • -40°F + 300°F
Orifice Diameters:
  • 1/8" & 1/4" = 0.250"
Note:
  • Not steam rated.
Brass
Part Number 		Connections Size X Y Z
FF90590-02 M x F NPT 1/8" 1.13" 0.75" 1.25"
FF90590-04 M x F NPT 1/4" 1.13" 0.81" 1.25"
FF90591-02 M x M NPT 1/8" 1.13" 0.75" 1.25"
FF90591-04 M x M NPT 1/4" 1.13" 0.81" 1.25"
FF90592-02 F x F NPT 1/8" 1.13" 0.75" 1.25"
FF90592-04 F x F NPT 1/4" 1.13" 0.85" 1.25"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
