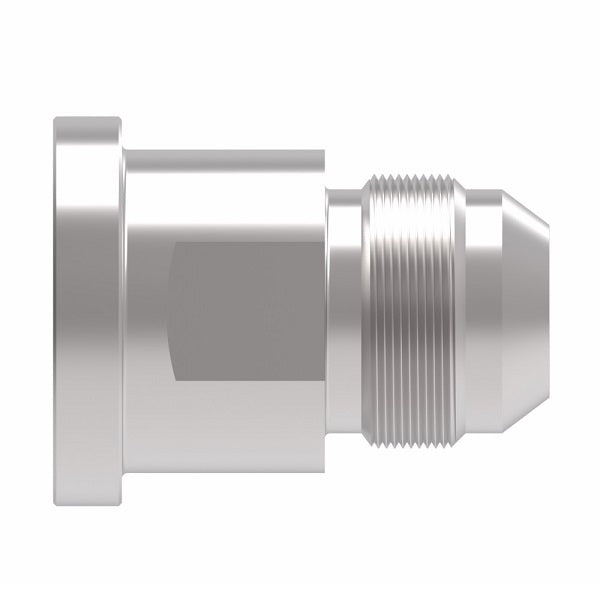

FF5239-1616S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long Adapter | Standard Pressure Series | -16 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel

FF5239-1616S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long Adapter | Standard Pressure Series | -16 Code 61 Split Flange x -16 Male 37° JIC Flare | Steel

Sale price$47.26

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Long Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $44.42
40–79 $40.17
80+ $35.45
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Male JIC
Material(s):
  • Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges
Part Number Steel Split Flange Size Tube O.D. Thread T A
FF5239-1212S 3/4" 0.75" 1-1/16-12 3.17"
FF5239-1616S 1" 1.00" 1-5/16-12 3.76"
FF5239-2020S 1-1/4" 1.25" 1-5/8-12 3.84"
FF5239-2420S 1-1/2" 1.50" 1-5/8-12 5.63"
FF5239-2424S 1-1/2" 1.50" 1-7/8-12 4.67"
FF5239-3232S 2" 2.00" 2-1/2-12 5.63"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
