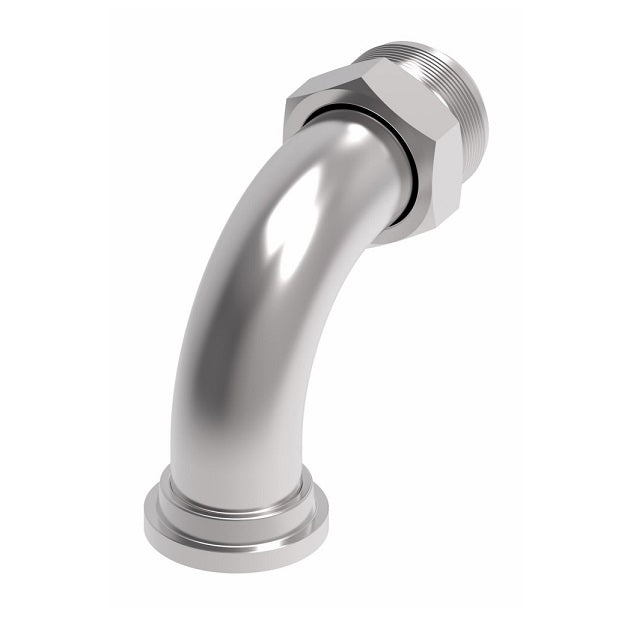

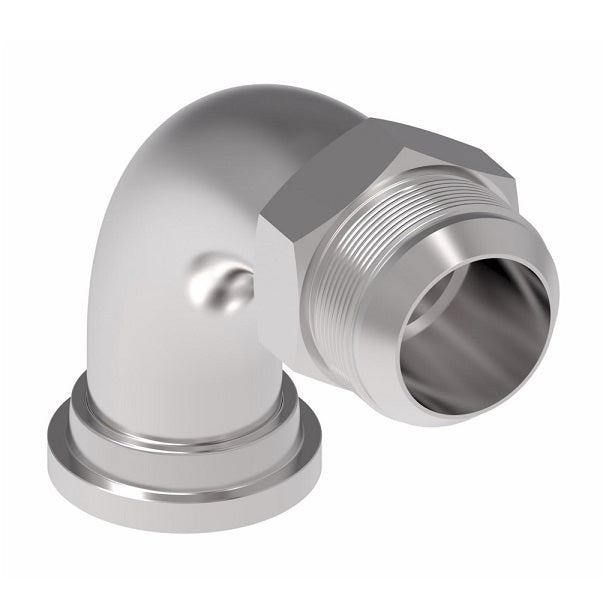

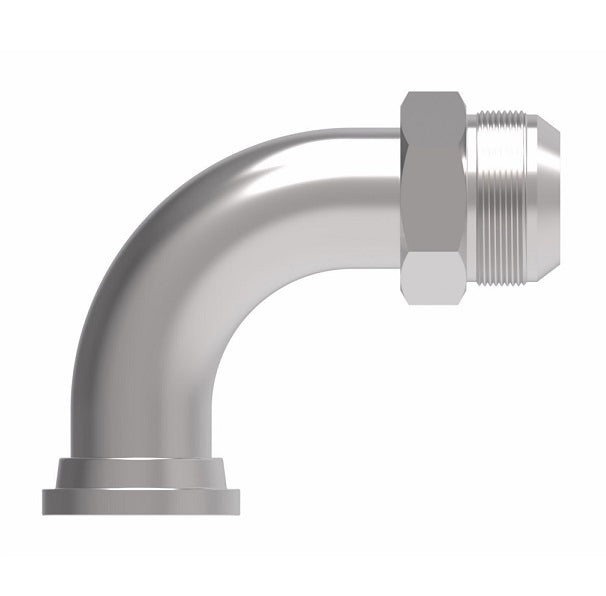

FF5162-2020S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
FF5162-2020S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
FF5162-2020S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel
Danfoss/Eaton

FF5162-2020S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare Long 90° Elbow Adapter | Standard Pressure Series | -20 Code 61 Split Flange x -20 Male 37° JIC Flare | Steel

Sale price$93.96

Aeroquip® by Danfoss
Code 61 Split Flange/37° JIC Flare Long Adapter
Code 61 Split Flange x Male 37° JIC Flare
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Code 61 Flange
  • 1-1/4in Male JIC
Material(s):
  • Steel
Note:
  • The performance rating of these adapters is the lower of the two terminal ends. These adapters are rated to JIC pressures as specified in SAE J514.
  • Mates with 449-74446 flanges.
Part Number Steel Split Flange Size Tube O.D. Thread T A B
FF5162-0808S 1/2" 0.50" 3/4-16 2.16" 1.62"
FF5162-1212S 3/4" 0.75" 1-1/16-12 2.81" 2.13"
FF5162-1612S 1" 0.75" 1-1/16-12 2.81" 2.13"
FF5162-1616S 1" 1.00" 1-5/16-12 3.41" 2.38"
FF5162-1620S 1" 1.25" 1-5/8-12 3.46" 2.38"
FF5162-2016S 1-1/4" 1.00" 1-5/16-12 3.41" 2.38"
FF5162-2020S 1-1/4" 1.25" 1-5/8-12 3.71" 2.62"
FF5162-2416S 1-1/2" 1.00" 1-5/16-12 3.41" 2.38"
FF5162-2420S 1-1/2" 1.25" 1-5/8-12 3.71" 2.62"
FF5162-2424S 1-1/2" 1.50" 1-7/8-12 4.33" 3.12"
FF5162-3232S 2" 2.00" 2-1/2-12 5.71" 4.50"
