Sale price$83.62

Aeroquip® by Danfoss

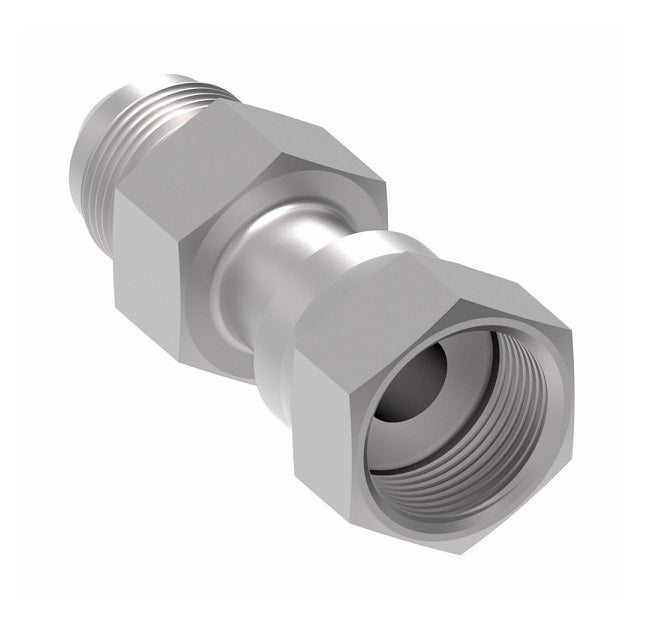

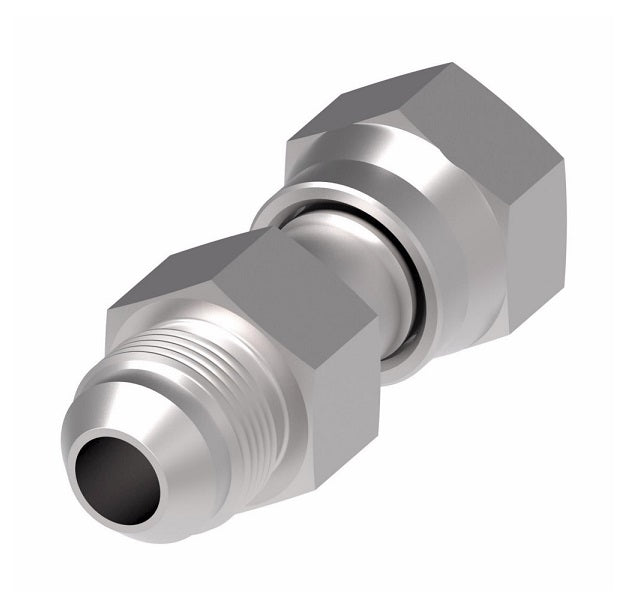

ORS Female Swivel / Male 37° JIC Flare Adapter
Female O-Ring Face Seal Swivel x Male 37° JIC Flare
Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $78.60
20–59 $71.08
60+ $62.72
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/4in Female O-Ring Face Seal
  • 1-1/4in Male JIC
Material(s):
  • Steel
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2209T0404S - - - - -
FF2209T0412S 0.25" 9/16-18 1-1/16-12 1.99" 0.86"
FF2209T0606S - - - - -
FF2209T0612S 0.38" 11/16-16 1-1/16-12 2.07" 0.86"
FF2209T0808S 0.50" 13/16-16 3/4-16 2.03" 0.66"
FF2209T0812S 0.50" 13/16-16 1-1/16-12 2.25" 0.86"
FF2209T1010S - - - - -
FF2209T1212S 0.75" 1-3/16-12 1-1/16-12 2.44" 0.86"
FF2209T1616S 1.00" 1-7/16-12 1-5/16-12 2.82" 0.91"
FF2209T2016S 1.25" 1-11/16-12 1-5/16-12 2.88" 0.91"
FF2209T2020S - - - - -
