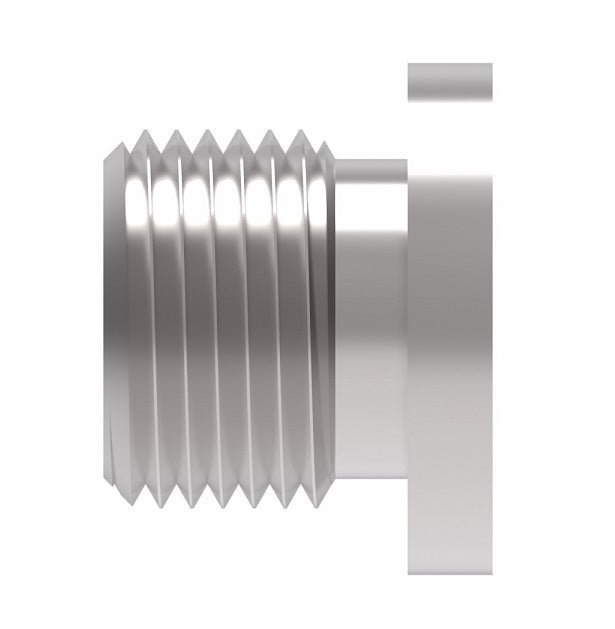

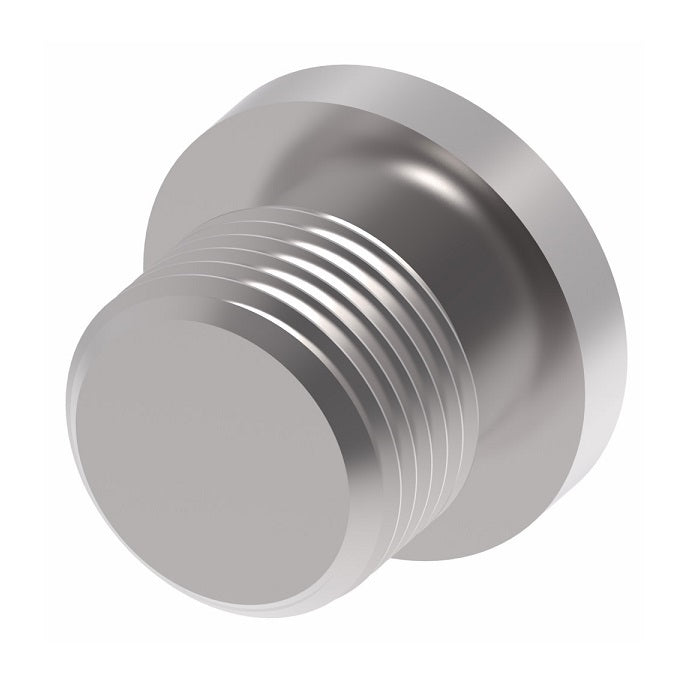

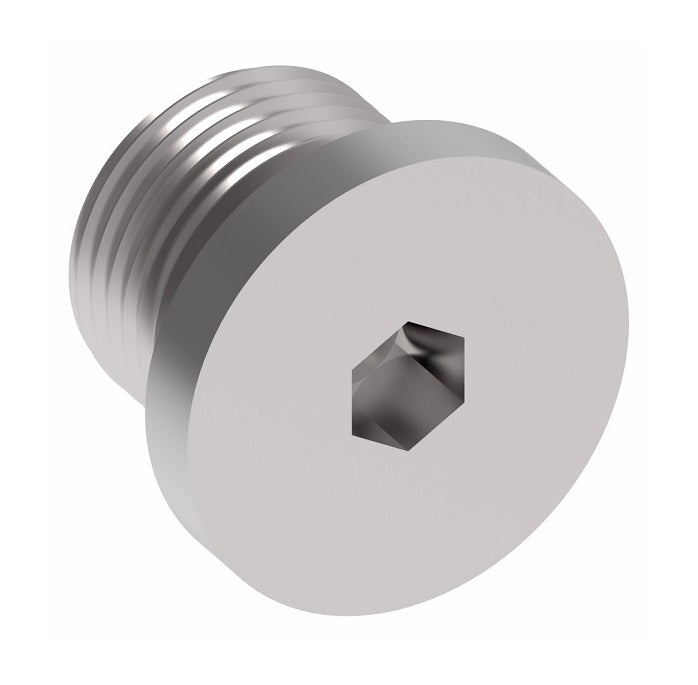

FF2137-02S Aeroquip by Danfoss | SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket) (without O-Ring) | -02 Male SAE O-Ring Boss | Steel
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
SAE Male O-Ring Boss (ORB) Plug Adapter (Hex Socket)
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.29 |
| 40–79 | $1.16 |
| 80+ | $1.03 |
Discounts applied in cart/checkout.
Product Data:
Shape:
No Orientation
Ends Configuration:
Material(s):
| Construction: | |||
|---|---|---|---|
|
 |
||||||
|---|---|---|---|---|---|---|
| Steel with Buna-N O-Ring Part Number |
Steel without O-Ring Part Number |
Tube O.D. | Thread T1 | A | C (Round) |
B Hex |
| FF2138-02S | FF2137-02S | 0.13" | 5/16-24 | 0.40" | 0.44" | 0.13" |
| FF2138-03S | FF2137-03S | 0.19" | 3/8-24 | 0.40" | 0.50" | 0.16" |
| FF2138-04S | FF2137-04S | 0.25" | 7/16-20 | 0.47" | 0.56" | 0.19" |
| FF2138-05S | FF2137-05S | 0.31" | 1/2-20 | 0.47" | 0.63" | 0.22" |
| FF2138-06S | FF2137-06S | 0.38" | 9/16-18 | 0.50" | 0.69" | 0.25" |
| FF2138-08S | FF2137-08S | 0.50" | 3/4-16 | 0.58" | 0.88" | 0.32" |
| FF2138-10S | FF2137-10S | 0.63" | 7/8-14 | 0.65" | 1.00" | 0.38" |
| FF2138-12S | FF2137-12S | 0.75" | 1-1/16-12 | 0.77" | 1.25" | 0.57" |
| FF2138-14S | FF2137-14S | 0.88" | 1-3/16-12 | 0.77" | 1.38" | 0.57" |
| FF2138-16S | FF2137-16S | 1.00" | 1-5/16-12 | 0.77" | 1.50" | 0.63" |
| FF2138-20S | FF2137-20S | 1.25" | 1-5/8-12 | 0.77" | 1.88" | 0.75" |
