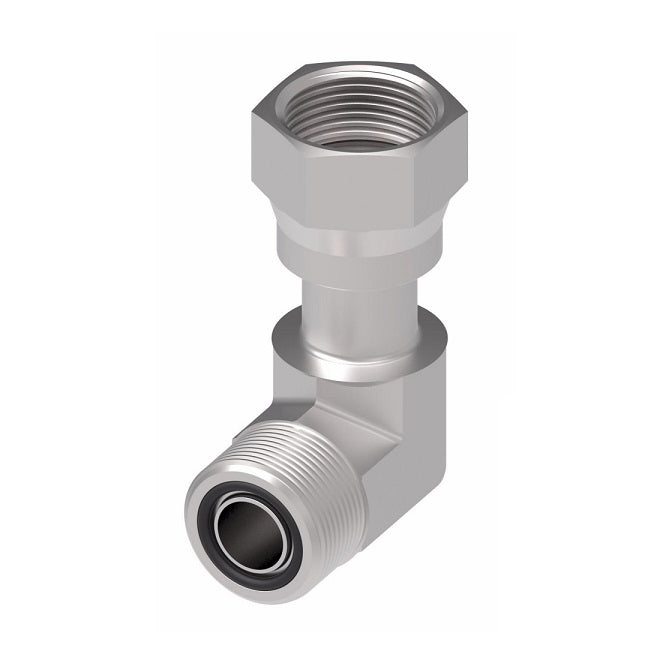

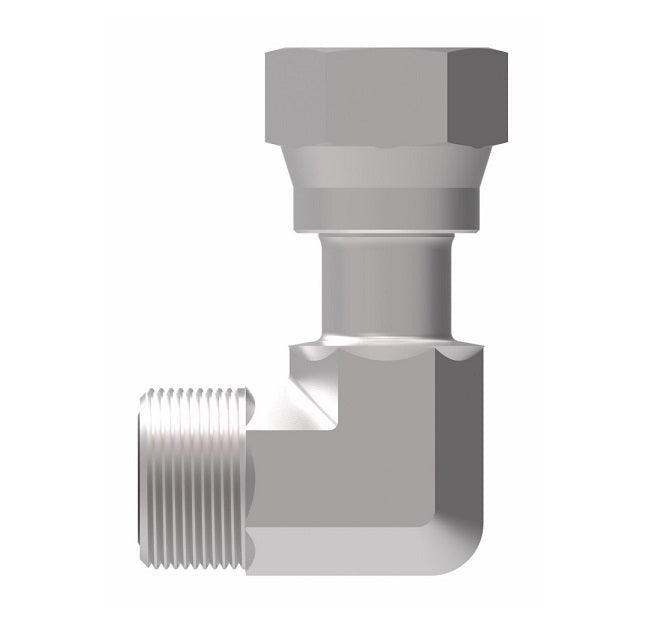

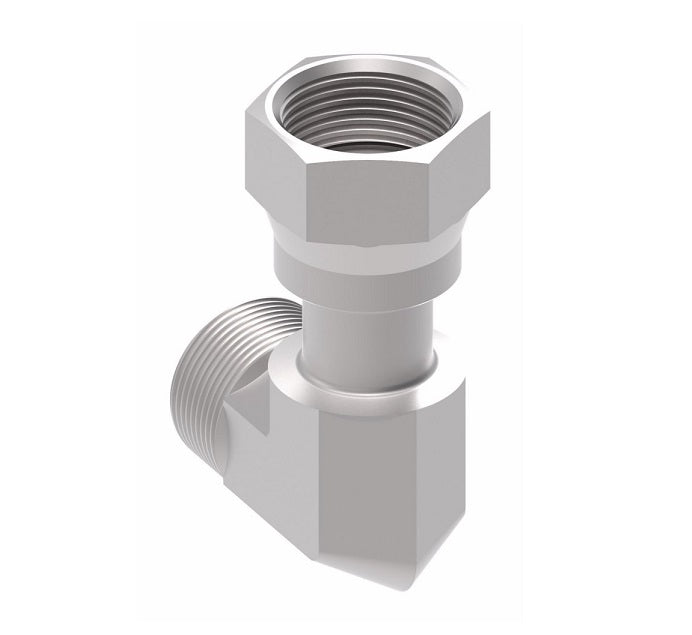

FF2098T0808S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel
FF2098T0808S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel
FF2098T0808S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel

FF2098T0808S Aeroquip by Danfoss | ORS Male/ORS Female 90° Elbow Adapter | -08 Male O-Ring Face Seal x -08 Female O-Ring Face Seal | Steel

Minimum Order Quantity: 5 Units

Sale price$9.91

Aeroquip® by Danfoss
ORS Male/ORS Female Adapter
Male O-Ring Face Seal x Female O-Ring Face Seal
90° Elbow

(Formerly Eaton Aeroquip)

In stock
Buy More, Save More!
Quantity Price Each
20–39 $9.32
40–79 $8.42
80+ $7.43
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Male O-Ring Face Seal
  • 1/2in Female O-Ring Face Seal
Material(s):
  • Steel
Specifications:
  • Ref. SAE 520221
Construction:
  • Buna-N O-Rings are standard.
Steel
Buna-N O-Ring
Part Number 		Steel
Viton O-Ring
Part Number 		Tube OD Thread T1 Thread T2 A B
FF2098T0404S - 0.25" 9/16-18 9/16-18 0.85" 1.04"
FF2098T0606S - 0.38" 11/16-16 11/16-16 0.98" 1.15"
FF2098T0808S FF2098T0808-213 0.50" 13/16-16 13/16-16 1.10" 1.49"
FF2098T1010S - 0.63" 1-14 1-14 1.31" 1.62"
FF2098T1212S FF2098T1212-213 0.75" 1-3/16-12 1-3/16-12 1.47" 1.82"
FF2098T1616S - 1.00" 1-7/16-12 1-7/16-12 1.64" 2.10"
FF2098T2020S - 1.25" 1-11/16-12 1-11/16-12 1.76" 2.29"
FF2098T2424S - 1.50" 2-12 2-12 1.92" 2.41"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
