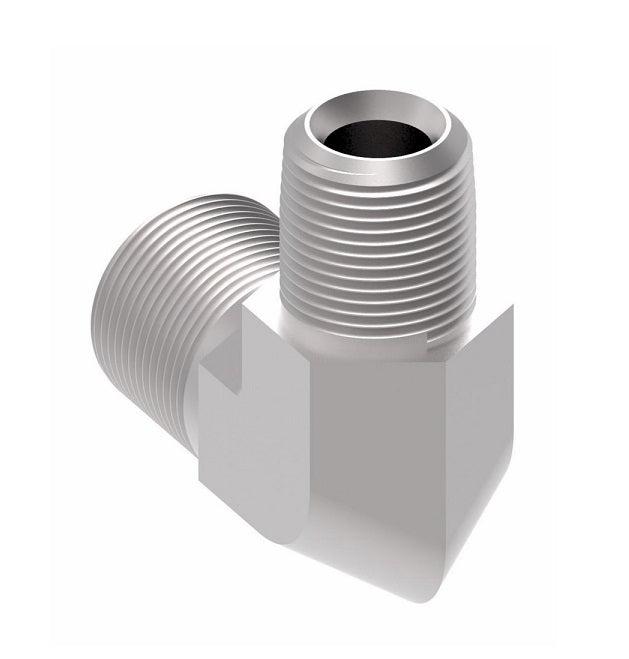

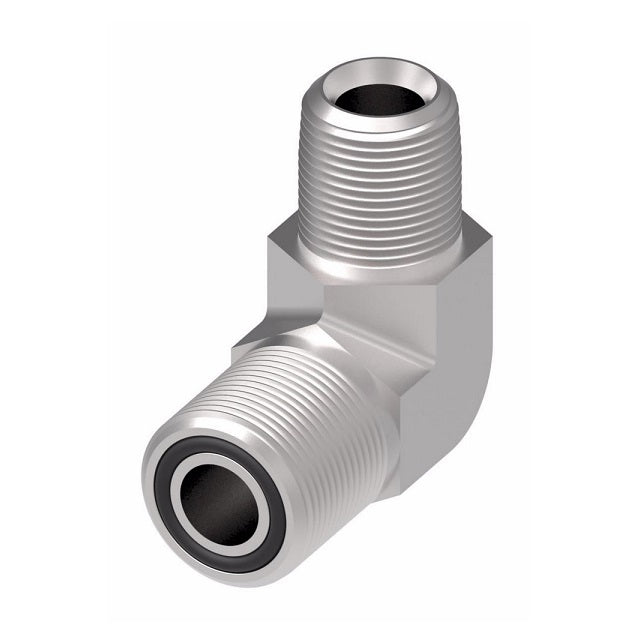

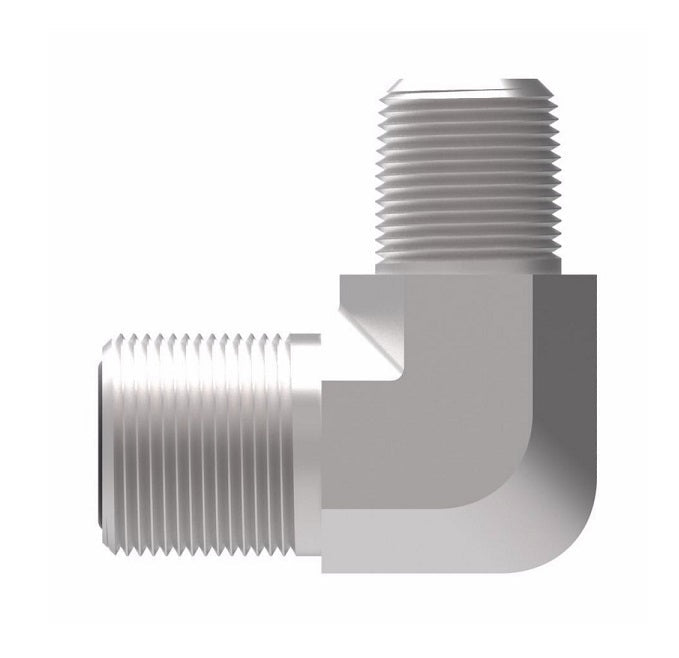

FF2032T0806S Aeroquip by Danfoss | ORS/Male NPTF 90° Elbow Adapter | -08 Male O-Ring Face Seal x -06 Male NPTF | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||
|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Thread T1 | Thread T2 | A | B |
| FF2032T0402S | 0.25" | 9/16-18 | 1/8-27 | 0.85" | 0.84" |
| FF2032T0404S | 0.25" | 9/16-18 | 1/4-18 | 0.92" | 1.15" |
| FF2032T0406S | 0.25" | 9/16-18 | 3/8-18 | 0.96" | 1.25" |
| FF2032T0602S | 0.38" | 11/16-16 | 1/8-27 | 0.98" | 0.96" |
| FF2032T0604S | 0.38" | 11/16-16 | 1/4-18 | 0.98" | 1.15" |
| FF2032T0606S | 0.38" | 11/16-16 | 3/8-18 | 1.04" | 1.25" |
| FF2032T0608S | 0.38" | 11/16-16 | 1/2-14 | 1.15" | 1.53" |
| FF2032T0802S | 0.50" | 13/16-16 | 1/8-27 | 1.10" | 0.87" |
| FF2032T0806S | 0.50" | 13/16-16 | 3/8-18 | 1.10" | 1.25" |
| FF2032T0808S | 0.50" | 13/16-16 | 1/2-14 | 1.21" | 1.53" |
| FF2032T0812S | 0.50" | 13/16-16 | 3/4-14 | 1.32" | 1.65" |
| FF2032T1008S | 0.63" | 1-14 | 1/2-14 | 1.31" | 1.53" |
| FF2032T1012S | 0.63" | 1-14 | 3/4-14 | 1.41" | 1.65" |
| FF2032T1208S | 0.75" | 1-3/16-12 | 1/2-14 | 1.47" | 1.65" |
| FF2032T1212S | 0.75" | 1-3/16-12 | 3/4-14 | 1.47" | 1.65" |
| FF2032T1216S | 0.75" | 1-3/16-12 | 1-11-1/2 | 1.62" | 2.03" |
| FF2093T1612S | 1.00" | 1-7/16-12 | 3/4-14 | 1.64" | 1.84" |
| FF2032T1616S | 1.00" | 1-7/16-12 | 1-11-1/2 | 1.64" | 2.03" |
| FF2032T2016S | 1.25" | 1-11/16-12 | 1-11-1/2 | 1.76" | 2.38" |
| FF2032T2020S | 1.25" | 1-11/16-12 | 1-1/4-11-1/2 | 1.76" | 2.41" |
| FF2032T2424S | 1.50" | 2-12 | 1-1/2-11-1/2 | 1.92" | 2.70" |
Additional Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
