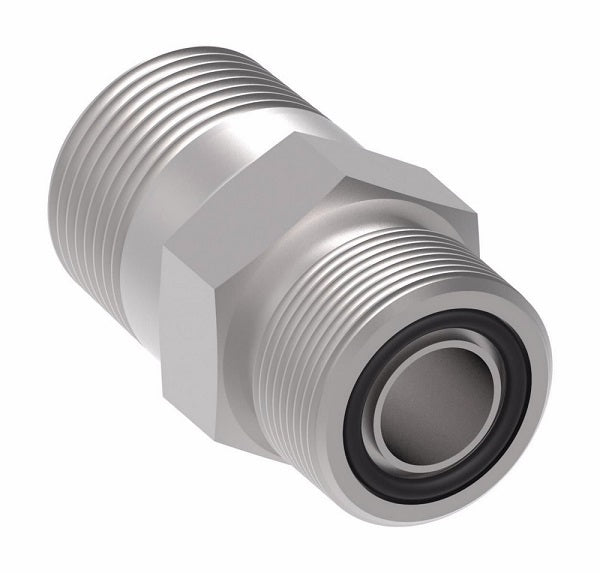

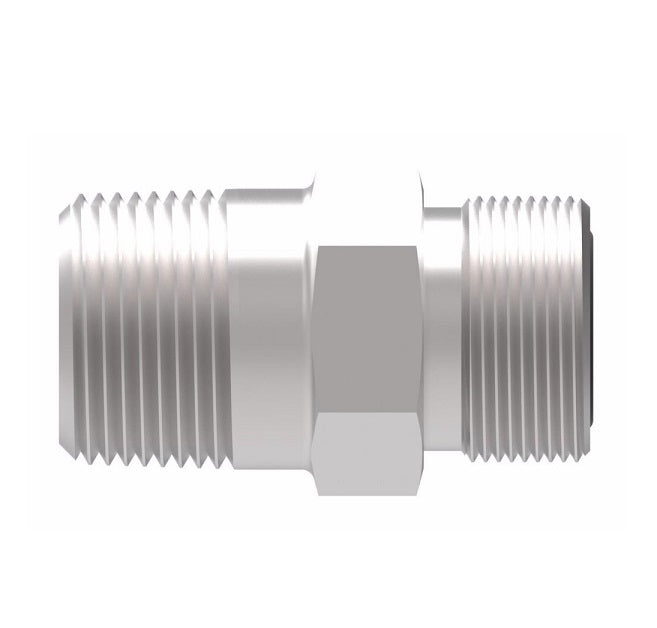

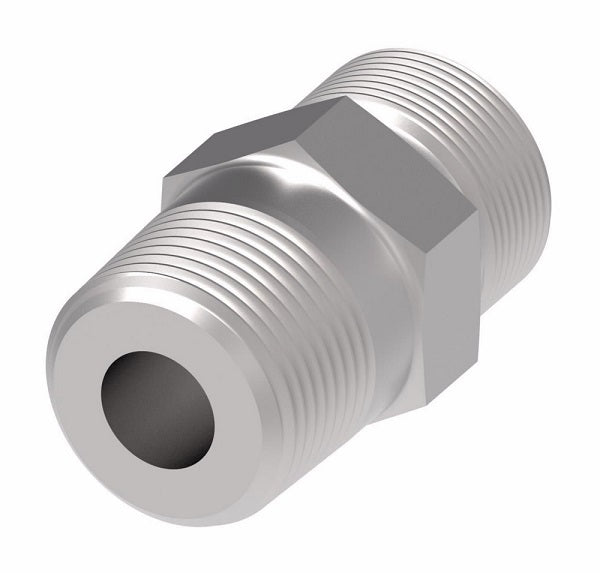

FF2031T1612S Aeroquip by Danfoss | ORS/Male NPTF Adapter | -16 Male O-Ring Face Seal x -12 Male NPTF | Steel
Buy more, save moreDiscounts applied in cart/checkout.
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Tube OD | Thread T1 | Thread T2 | A | Hex 1 |
||
| FF2031T0402S | 0.25" | 9/16-18 | 1/8-27 | 1.03" | 0.62" | ||
| FF2031T0404S | 0.25" | 9/16-18 | 1/4-18 | 1.24" | 0.62" | ||
| FF2031T0406S | 0.25" | 9/16-18 | 3/8-18 | 1.24" | 0.75" | ||
| FF2031T0408S | 0.25" | 9/16-18 | 1/2-14 | 1.49" | 0.88" | ||
| FF2031T0602S | 0.38" | 11/16-16 | 1/8-27 | 1.12" | 0.75" | ||
| FF2031T0604S | 0.38" | 11/16-16 | 1/4-18 | 1.30" | 0.75" | ||
| FF2031T0606S | 0.38" | 11/16-16 | 3/8-18 | 1.30" | 0.75" | ||
| FF2031T0608S | 0.38" | 11/16-16 | 1/2-14 | 1.55" | 0.88" | ||
| FF2031T0804S/a> | 0.50" | 13/16-16 | 1/4-18 | 1.36" | 0.88" | ||
| FF2031T0806S | 0.50" | 13/16-16 | 3/8-18 | 1.36" | 0.88" | ||
| FF2031T0808S | 0.50" | 13/16-16 | 1/2-14 | 1.61" | 0.88" | ||
| FF2031T0812S | 0.50" | 13/16-16 | 3/4-14 | 1.68" | 1.06" | ||
| FF2031T1008S | 0.63" | 1-14 | 1/2-14 | 1.72" | 1.06" | ||
| FF2031T1012S | 0.63" | 1-14 | 3/4-14 | 1.78" | 1.06" | ||
| FF2031T1208S | 0.75" | 1-3/16-12 | 1/2-14 | 1.84" | 1.25" | ||
| FF2031T1212S | 0.75" | 1-3/16-12 | 3/4-14 | 1.84" | 1.25" | ||
| FF2031T1216S | 0.75" | 1-3/16-12 | 1-11-1/2 | 2.03" | 1.38" | ||
| FF2031T1612S | 1.00" | 1-7/16-12 | 3/4-14 | 1.86" | 1.50" | ||
| FF2031T1616S | 1.00" | 1-7/16-12 | 1-11-1/2 | 2.05" | 1.50" | ||
| FF2031T1620S | 1.00" | 1-7/16-12 | 1-1/4-11-1/2 | 2.16" | 1.69" | ||
| FF2031T2016S | 1.25" | 1-11/16-12 | 1-11-1/2 | 2.13" | 1.75" | ||
| FF2031T2020S | 1.25" | 1-11/16-12 | 1-1/4-11-1/2 | 2.16" | 1.75" | ||
| FF2031T2424S | 1.50" | 2-12 | 1-1/2-11-1/2 | 2.26" | 2.12" | ||
Additional Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
