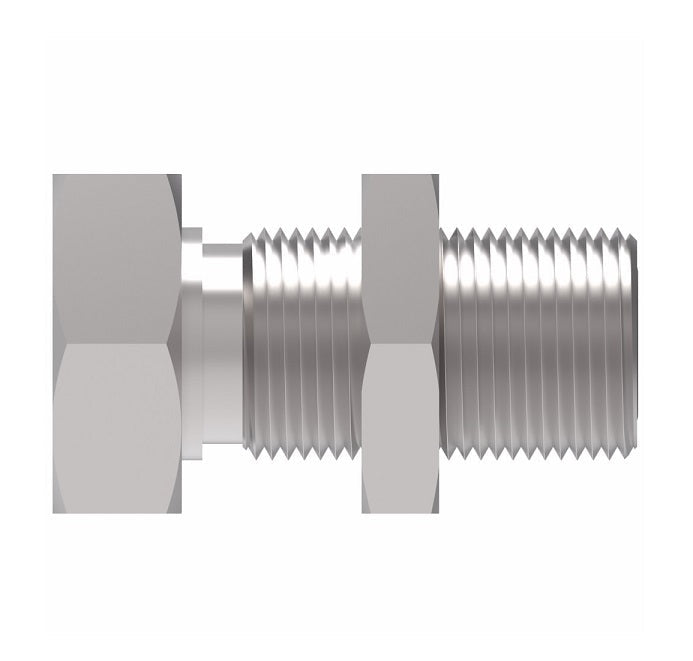

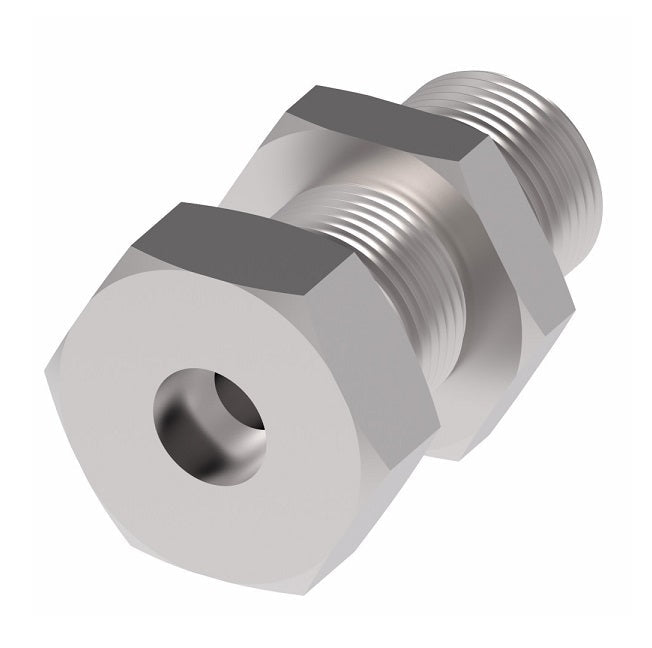

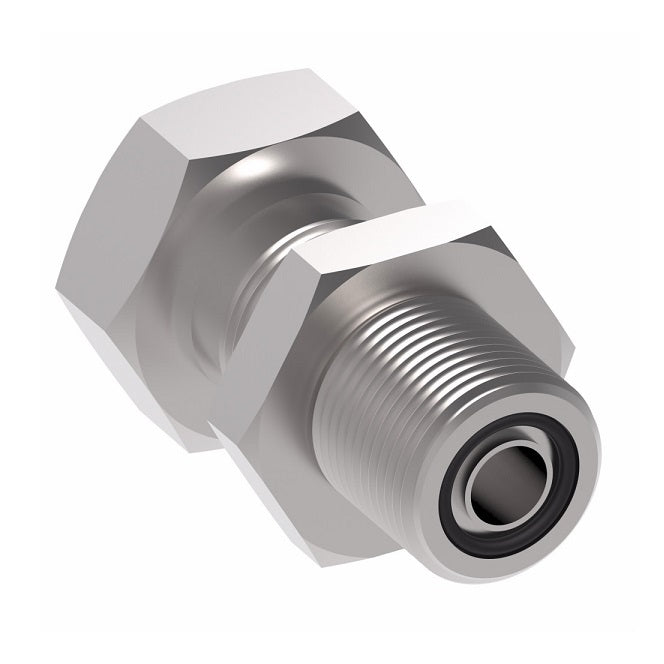

FF1922T1212S Aeroquip by Danfoss | ORS Bulkhead Male / Braze Adapter | -12 Male O-Ring Face Seal Bulkhead x -12 Braze End | Steel
FF1922T1212S Aeroquip by Danfoss | ORS Bulkhead Male / Braze Adapter | -12 Male O-Ring Face Seal Bulkhead x -12 Braze End | Steel
FF1922T1212S Aeroquip by Danfoss | ORS Bulkhead Male / Braze Adapter | -12 Male O-Ring Face Seal Bulkhead x -12 Braze End | Steel

FF1922T1212S Aeroquip by Danfoss | ORS Bulkhead Male / Braze Adapter | -12 Male O-Ring Face Seal Bulkhead x -12 Braze End | Steel

Sale price$40.16
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520604
Construction:
  • Buna-N O-Rings are standard.
Part Number Tube OD Thread T A B C D Hex 1
FF1922T0606S 0.38" 11/16-16 1.72" 1.34" 0.25" 0.38" 1.00"
FF1922T1010S 0.63" 1-14 2.11" 1.60" 0.38" 0.62" 1.31"
FF1922T1212S 0.75" 1-3/16-12 2.18" 1.64" 0.38" 0.75" 1.50"
FF1922T1616S 1.00" 1-7/16-12 2.43" 1.66" 0.50" 1.00" 1.75"

*Danfoss braze counterbores are dimensioned for sized or emeryed tubing. If tubing is used as received, contact Support for appropriate part number.

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Male O-Ring Face Seal
  • 3/4in Braze End
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
