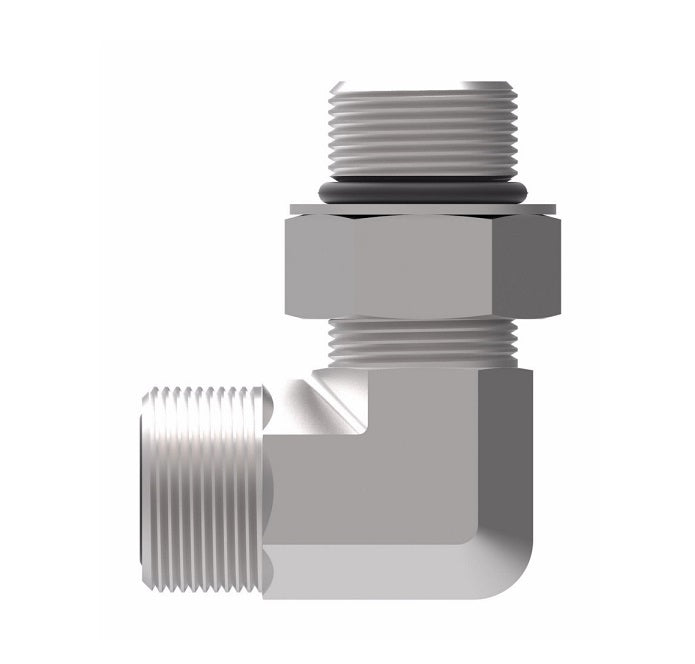

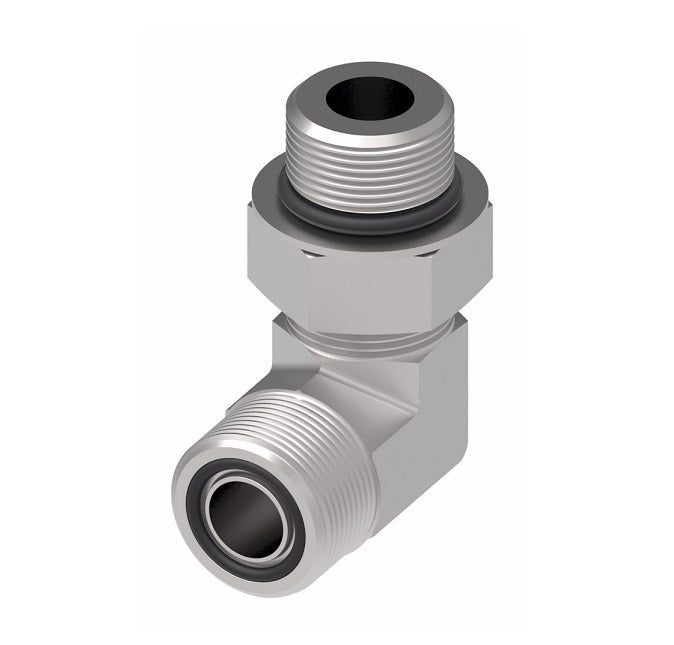

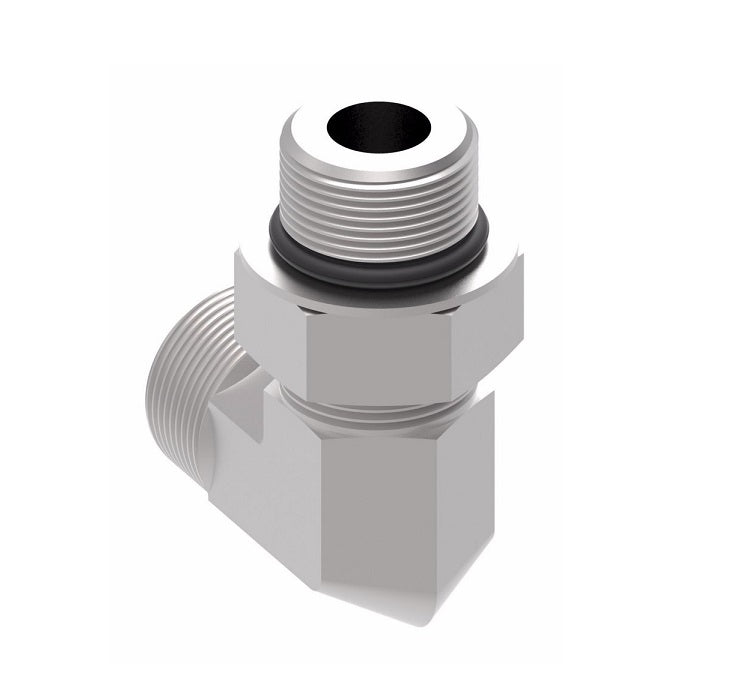

FF1868T0606S Aeroquip by Danfoss | ORS/SAE O-Ring Boss (adj.) 90° Elbow Adapter | -06 Male O-Ring Face Seal x -06 Male SAE O-Ring Boss | Steel
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
ORS/SAE O-Ring Boss (adj.) Adapter
Male O-Ring Face Seal x Male SAE O-Ring Boss
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.63 |
| 40–79 | $5.99 |
| 80+ | $5.29 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
|||
| Construction: | |||
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel with Buna-N O-Ring Part Number |
Steel with Viton O-Ring Part Number |
Tube OD | Thread T1 | Thread T2 | A | B | C |
| FF1868T0403S | - | 0.25" | 9/16-18 | 3/8-24 | 0.85" | 1.19" | 0.36" |
| FF1868T0404S | - | 0.25" | 9/16-18 | 7/16-20 | 0.85" | 1.29" | 0.41" |
| FF1868T0405S | - | 0.25" | 9/16-18 | 1/2-20 | 0.88" | 1.36" | 0.41" |
| FF1868T0406S | - | 0.25" | 9/16-18 | 9/16-18 | 0.92" | 1.45" | 0.46" |
| FF1868T0408S | - | 0.25" | 9/16-18 | 3/4-16 | 0.97" | 1.60" | 0.52" |
| FF1868T0604S | - | 0.38" | 11/16-16 | 7/16-20 | 0.98" | 1.37" | 0.41" |
| FF1868T0605S | - | 0.38" | 11/16-16 | 1/2-20 | 0.98" | 1.37" | 0.41" |
| FF1868T0606S | - | 0.38" | 11/16-16 | 9/16-18 | 0.98" | 1.45" | 0.46" |
| FF1868T0608S | - | 0.38" | 11/16-16 | 3/4-16 | 1.04" | 1.60" | 0.52" |
| FF1868T0610S | - | 0.38" | 11/16-16 | 7/8-14 | 1.15" | 1.97" | 0.62" |
| FF1852T0612S | - | 0.38" | 11/16-16 | 1-1/16-12 | 1.25" | 2.17" | 0.71" |
| FF1868T0806S | - | 0.50" | 13/16-16 | 9/16-18 | 1.11" | 1.44" | 0.46" |
| FF1868T0808S | - | 0.50" | 13/16-16 | 3/4-16 | 1.10" | 1.60" | 0.52" |
| FF1868T0810S | - | 0.50" | 13/16-16 | 7/8-14 | 1.21" | 1.97" | 0.62" |
| FF1868T0812S | - | 0.50" | 13/16-16 | 1-1/16-12 | 1.32" | 2.17" | 0.71" |
| FF1868T1008S | - | 0.63" | 1-14 | 3/4-16 | 1.31" | 1.80" | 0.52" |
| FF1868T1010S | FF1868T1010-213 | 0.63" | 1-14 | 7/8-14 | 1.31" | 1.97" | 0.62" |
| FF1868T1012S | - | 0.63" | 1-14 | 1-1/16-12 | 1.41" | 2.17" | 0.71" |
| FF1868T1208S | - | 0.75" | 1-3/16-12 | 3/4-16 | 1.47" | 1.84" | 0.52" |
| FF1868T1212S | FF1868T1212-213 | 0.75" | 1-3/16-12 | 1-1/16-12 | 1.47" | 2.17" | 0.71" |
| FF1868T1216S | - | 0.75" | 1-3/16-12 | 1-5/16-12 | 1.62" | 2.35" | 0.71" |
| FF1868T1612S | - | 1.00" | 1-7/16-12 | 1-1/16-12 | 1.64" | 2.32" | 0.71" |
| FF1868T1616S | FF1868T1616-213 | 1.00" | 1-7/16-12 | 1-5/16-12 | 1.64" | 2.35" | 0.71" |
| FF1868T1620S | FF1868T1620-213 | 1.00" | 1-7/16-12 | 1-5/8-12 | 1.76" | 2.45" | 0.71" |
| FF1868T2016S | - | 1.25" | 1-11/16-12 | 1-5/16-12 | 1.76" | 2.42" | 0.71" |
| FF1868T2020S | - | 1.25" | 1-11/16-12 | 1-5/8-12 | 1.76" | 2.45" | 0.71" |
| FF1868T2420S | - | 1.50" | 2-12 | 1-5/8-12 | 1.92" | 2.59" | 0.71" |
| FF1868T2424S | - | 1.50" | 2-12 | 1-7/8-12 | 1.92" | 2.59" | 0.71" |
