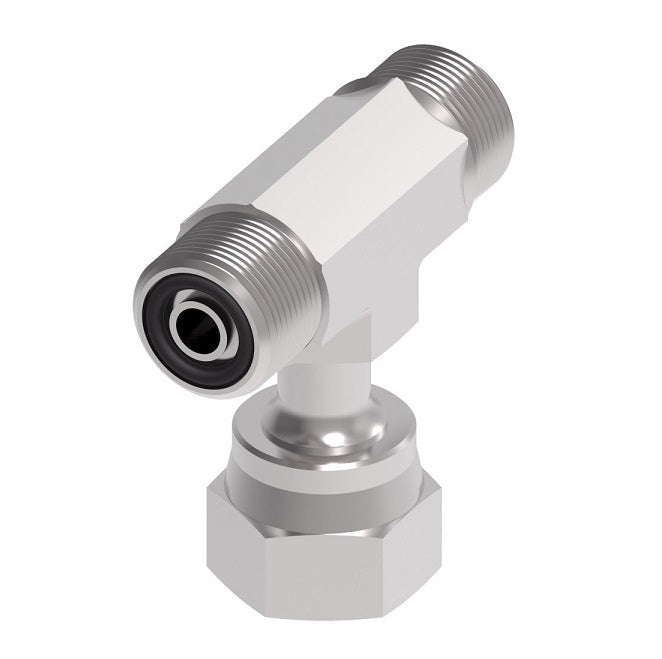

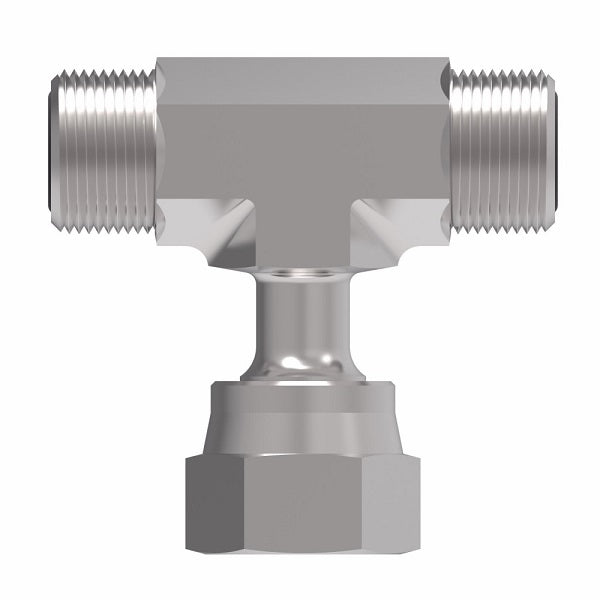

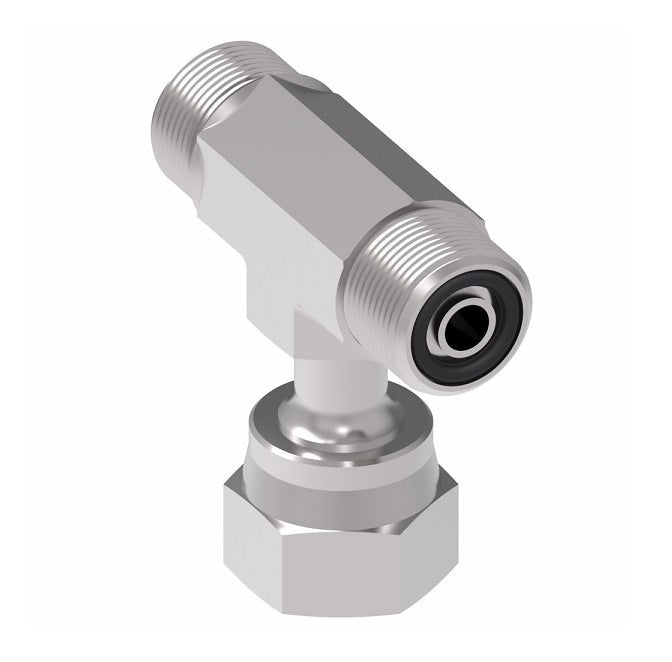

FF1857T0404S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel
FF1857T0404S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel
FF1857T0404S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel

FF1857T0404S Aeroquip by Danfoss | ORS Male/ORS Male/ORS Female Branch Tee Adapter | -04 Male O-Ring Face Seal x -04 Male O-Ring Face Seal x -04 Female O-Ring Face Seal | Steel

Sale price$20.76
Buy more, save moreDiscounts applied in cart/checkout.
Specifications:
  • Ref. SAE 520433
Construction:
  • Buna-N O-Rings are standard.
Steel
Part Number 		Tube OD Thread T1 Thread T2 A B
FF1857T0404S 0.25" 9/16-18 9/16-18 0.85" 1.04"
FF1857T0606S 0.38" 11/16-16 11/16-16 0.98" 1.15"
FF1857T0808S 0.50" 13/16-16 13/16-16 1.10" 1.49"
FF1857T1010S 0.63" 1-14 1-14 1.31" 1.62"
FF1857T1212S 0.75" 1-3/16-12 1-3/16-12 1.47" 1.82"
FF1857T1616S 1.00" 1-7/16-12 1-7/16-12 1.64" 2.10"
FF1857T2020S 1.25" 1-11/16-12 1-11/16-12 1.76" 2.29"

Additional Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Male O-Ring Face Seal
  • 1/4in Male O-Ring Face Seal
  • 1/4in Female O-Ring Face Seal
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
