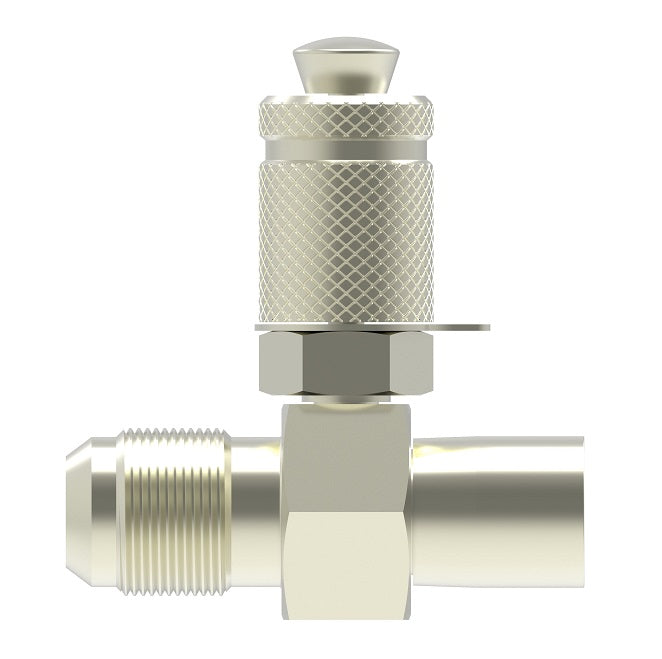

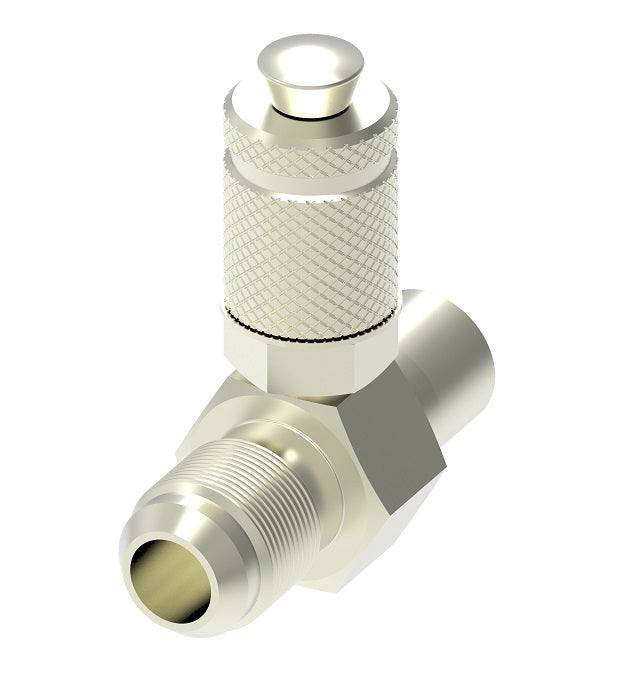

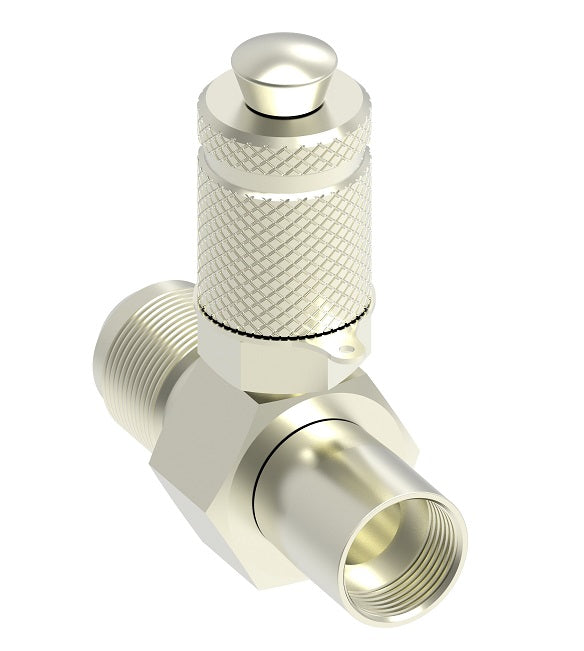

FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel
FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel
FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel

FF14790 Hansen® by Danfoss | Test Coupling | Swivel Run Tee | 7/16-20 Male UNF x 7/16-20 Female UNF | FKM Seal | Nickel Plated Steel

Sale price$95.48

Hansen® by Danfoss
Test Coupling | Swivel Run Tee
Buy More, Save More!
Quantity Price Each
5–19 $89.75
20–59 $81.16
60+ $71.61
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Shape:

Straight

Material(s):
  • Zinc/Nickel-Plated Steel
Applications & Markets:
  • Hydraulics and mineral based fluids
  • Agricultural equipment
  • Construction equipment
  • On-Highway vehicles
  • Industrial equipment
Couplings/Adapters:
  • Standard body material: Zinc Nickel Plated Steel.
  • Standard seal material: FKM.
  • 345 bar (5,000 psi) connect under pressure.
  • 630 bar (9,000 psi) working pressure.
Part Number Thread #1 Thread #2 Dimensions Bag Quantity
A B Hex 1
FF14790 7/16-20 Male UNF 7/16-20 Female UNF 1.88"
(47.7mm)		 0.79"
(20.0mm)		 1.06"
(27.0mm)		 2
FF14791 9/16-18 Male UNF 9/16-18 Female UNF 1.88"
(47.7mm)		 0.79"
(20.0mm)		 1.06"
(27.0mm)		 2
FF14792 3/4-16 Male UNF 3/4-16 Female UNF 1.88"
(47.7mm)		 0.79"
(20.0mm)		 1.06"
(27.0mm)		 2

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
