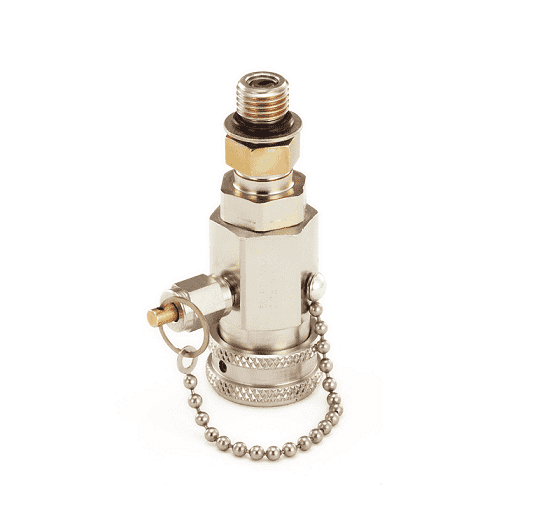

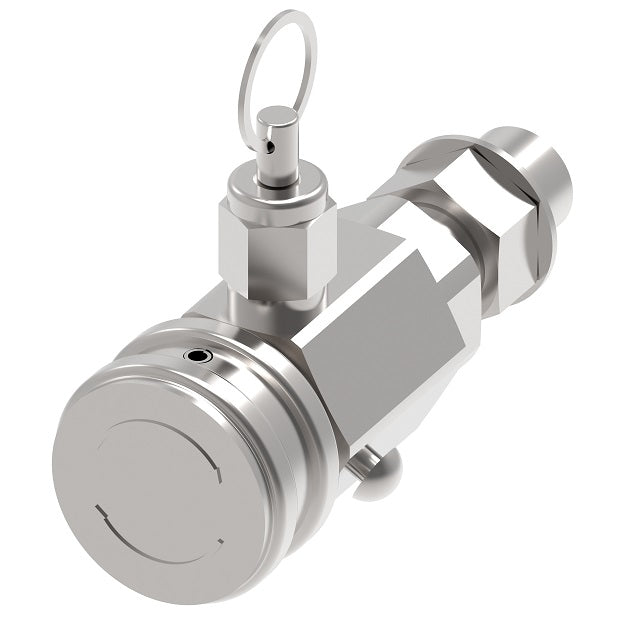

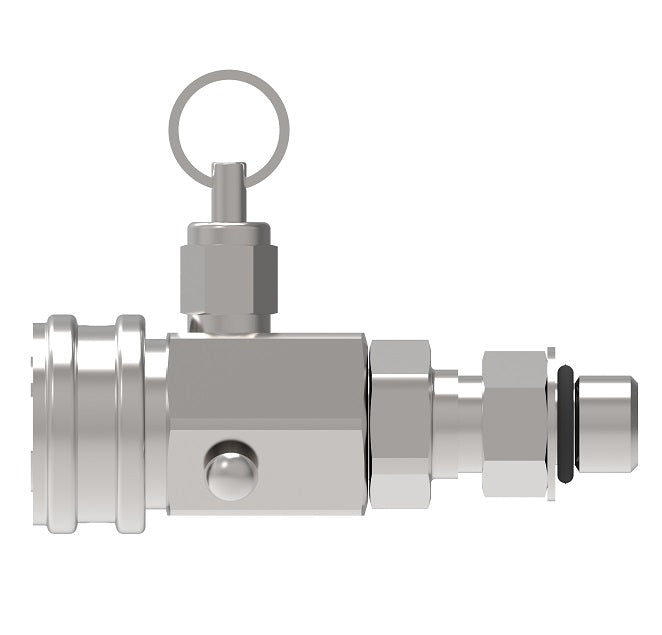

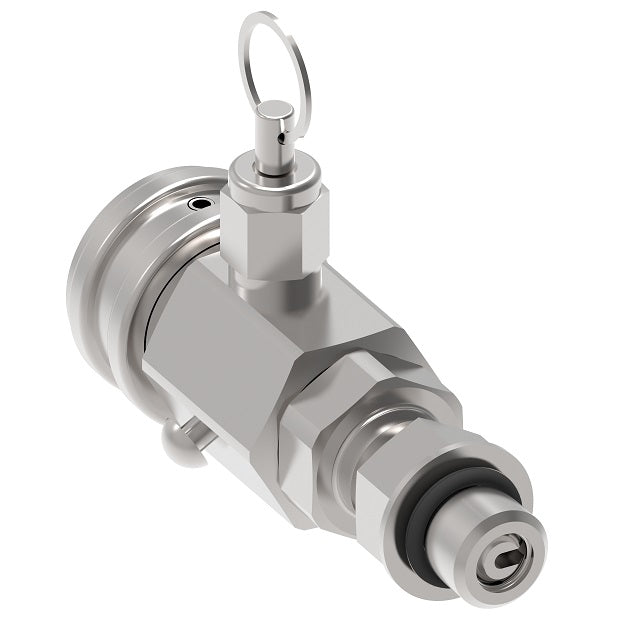

FD15-1025-04 Hansen® by Danfoss | Quick Disconnect Oil Sampling Valve | FD15 Series | 1/4" Male SAE O-Ring Boss x 1/4" Body Size | 0-50 psi | NBR Seal | Steel
FD15-1025-04 Hansen® by Danfoss | Quick Disconnect Oil Sampling Valve | FD15 Series | 1/4" Male SAE O-Ring Boss x 1/4" Body Size | 0-50 psi | NBR Seal | Steel
FD15-1025-04 Hansen® by Danfoss | Quick Disconnect Oil Sampling Valve | FD15 Series | 1/4" Male SAE O-Ring Boss x 1/4" Body Size | 0-50 psi | NBR Seal | Steel
FD15-1025-04 Hansen® by Danfoss | Quick Disconnect Oil Sampling Valve | FD15 Series | 1/4" Male SAE O-Ring Boss x 1/4" Body Size | 0-50 psi | NBR Seal | Steel

FD15-1025-04 Hansen® by Danfoss | Quick Disconnect Oil Sampling Valve | FD15 Series | 1/4" Male SAE O-Ring Boss x 1/4" Body Size | 0-50 psi | NBR Seal | Steel

Sale price$222.36

Hansen® by Danfoss
FD15 Series | Oil Sampling Valve

Diagnostic Quick Disconnect Valve

Danfoss Hansen FD15 Series Oil Sampling Valve is designed for in-line sampling of system fluids without system shutdown, usually in less than one minute, and without fluid contamination.
Buy More, Save More!
Quantity Price Each
5–19 $209.02
20–59 $189.01
60+ $166.77
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • FD15 Series
Shape:

Straight
Features:
  • Operating Temperature Range: -65°F to +275°F (-53°C to +135°C)
  • Minimum Burst Pressure: 12,000 psi
  • Minimum Particle Restriction: 500 microns
  • Maximum Torque to Operate: 10 in. lbs.
  • FD15-1000-04 is qualified to the MIL-V-81940/2-1
  • Note: This valve is not intended for aerospace applications.
Applications & Markets:
  • Engine oil
  • Lubricating oil
  • Transmission fluid and hydraulic fluids in mobile construction equipment, military vehicles, trucks and stationary equipment.
Materials:
  • Standard body material: Corrosion resistant plated steel with brass internal components.
  • Standard seal materials: Nitrile (NBR)
Operation:
  • For best results, Danfoss FD15 Oil Sampling Valves should be installed in dynamic fluid lines in low pressure and return lines. If only one sampling point can be chosen, it should be in the return line, upstream of any return line filter. This will insure a representative sample of all components in the fluid system for their present condition.
Instructions:
  • 1. Remove metal dustcover on discharge port.
  • 2. Discharge approximately 200 ml of oil to flush valve by turning knurled knob 1/4 turn to the right. Dispose of this sample in the appropriate manner.
  • 3. Locate clean oil sample bottle under discharge port. (Sample bottles are usually supplied by the oil analysis lab.)
  • 4. Turn knurled knob 1/4 turn to the right until bottle is filled to the desired level. The knob can be backed off to throttle the rate of flow.
  • 5. When bottle is filled let go of the knurled knob, the valve will close automatically. Replace metal dustcover wrench tight.
Notes:
  • As required in MIL-V-81940/2-1 this valve's flow rate is between 100 and 1500 milliliters per minute at pressures from 0-50 psi. (MIL-V-81940/2-1 applies only to pressures from 50-300 psi.) The 1/4" NPTF version is qualified to MIL-V-81940/2-1 and its performance is representative of the other inlet port configurations listed above. QPL-81940-9 6-5-89
Male Pipe Thread 50-300 psi | Figure 1
Male SAE O-Ring Thread 50-300 psi | Figure 2
50-300 psi
Part Number Sampling Type Port Size Thread Figure Dimensions
NBR A B C Hex 1 Hex 2 Hex 3
FD15-1000-02 50-300 psi 1/8" 1/8-27 Male NPTF 1 2.42"
(61.5mm)		 1.00"
(25.4mm)		 1.30"
(33.0mm)		 0.69"
(17.5mm)		 0.38"
(9.7mm)		 -
FD15-1000-04 50-300 psi 1/4" 1/4-18 Male NPTF 1 2.56"
(65.0mm)		 1.00"
(25.4mm)		 1.30"
(33.0mm)		 0.69"
(17.5mm)		 0.38"
(9.7mm)		 -
FD15-1002-04 50-300 psi 7/16" 7/16-20 Male SAE O-Ring Boss 1 2.79"
(70.9mm)		 1.00"
(25.4mm)		 1.30"
(33.0mm)		 0.69"
(17.5mm)		 0.38"
(9.7mm)		 0.56"
(14.2mm)
Male Pipe Thread 0-50 psi | Figure 3
Male SAE O-Ring Thread 0-50 psi | Figure 4
0-50 psi
Part Number Sampling Type Port Size Thread Figure Dimensions
NBR A B C Hex 1 Hex 2 Hex 3
FD15-1026-04 0-50 psi 1/4" 1/4-18 Male NPTF 3 2.56"
(65.0mm)		 1.00"
(25.4mm)		 1.30"
(33.0mm)		 0.69"
(17.5mm)		 0.38"
(9.7mm)		 -
FD15-1025-04 0-50 psi 7/16" 7/16-20 Male SAE O-Ring Boss 4 2.79"
(70.9mm)		 1.00"
(25.4mm)		 1.30"
(33.0mm)		 0.69"
(17.5mm)		 0.38"
(9.7mm)		 0.56"
(14.2mm)
