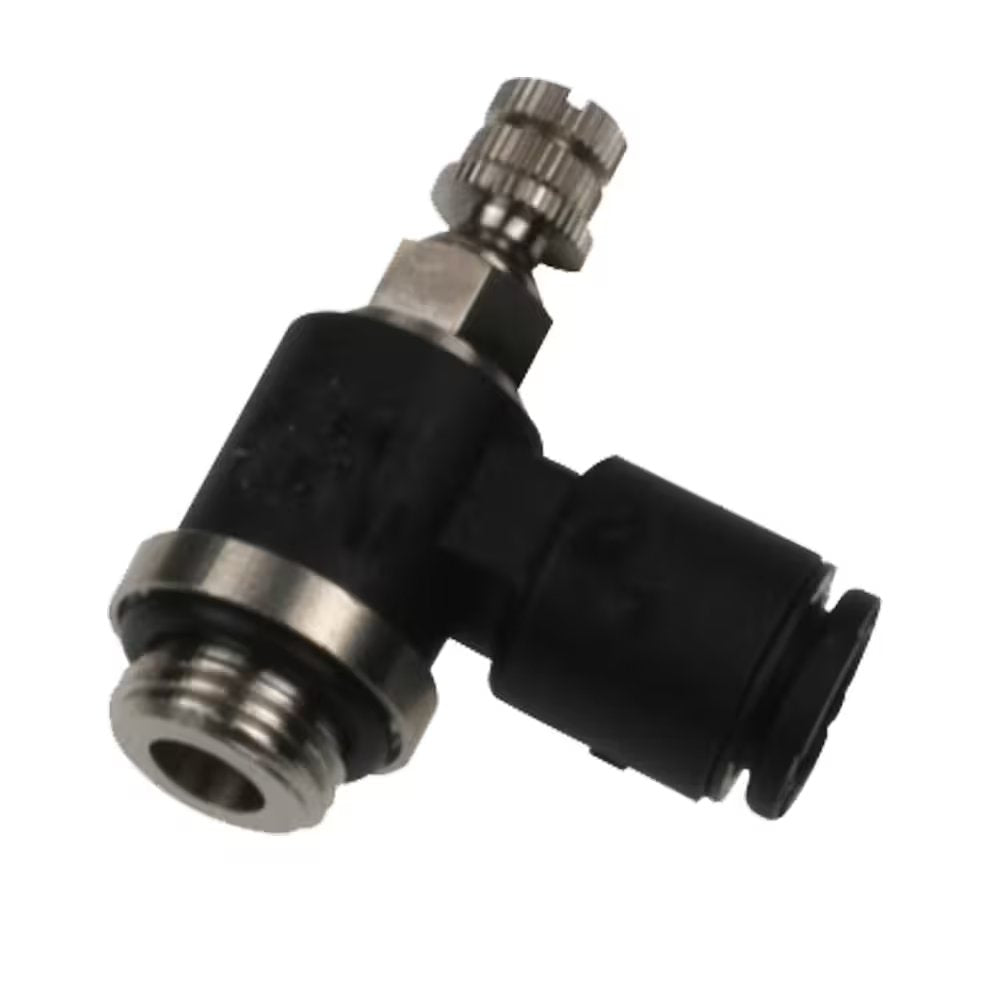

FCMI731-3M-M5 by Parker | Miniature Flow Controls | 3mm Push-to-Connect x M5X0.8 Male M5 Thread | 6mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

FCMI731-3M-M5 by Parker | Miniature Flow Controls | 3mm Push-to-Connect x M5X0.8 Male M5 Thread | 6mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Sale price$176.92

by Parker Hannifin
Miniature Flow Controls:FCMI731 Miniature Meter In Flow Control - BSPP

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $166.30
30–59 $150.38
60+ $132.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • FCMI731 Series
Shape:

90° Elbow

Material(s):
  • Glass-Reinforced Nylon
  • Stainless Steel
  • Nickel-Plated Brass
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex H Closed H Open L
FCMI731-3M-M3 3 mm M3X0.5 6 mm 23.5 mm 26.0 mm 17.0 mm
FCMI731-3M-M5 3 mm M5X0.8 6 mm 23.5 mm 26.0 mm 17.0 mm
FCMI731-4M-M5 4 mm M5X0.8 6 mm 23.5 mm 26.0 mm 18.0 mm
FCMI731-4M-2G 4 mm 1/8" 7 mm 27.0 mm 29.5 mm 17.0 mm
FCMI731-6M-M5 6 mm M5X0.8 6 mm 23.5 mm 26.0 mm 18.0 mm
FCMI731-6M-2G 6 mm 1/8" 7 mm 27.0 mm 29.5 mm 18.5 mm
FCMI731-6M-4G 6 mm 1/4" 8 mm 30.0 mm 32.5 mm 19.0 mm
FCMI731-8M-2G 8 mm 1/8" 13 mm 26.5 mm 31.0 mm 26.0 mm
FCMI731-8M-4G 8 mm 1/4" 16 mm 29.0 mm 34.0 mm 27.5 mm
FCMI731-8M-6G 8 mm 3/8" 20 mm 36.0 mm 42.0 mm 29.0 mm
