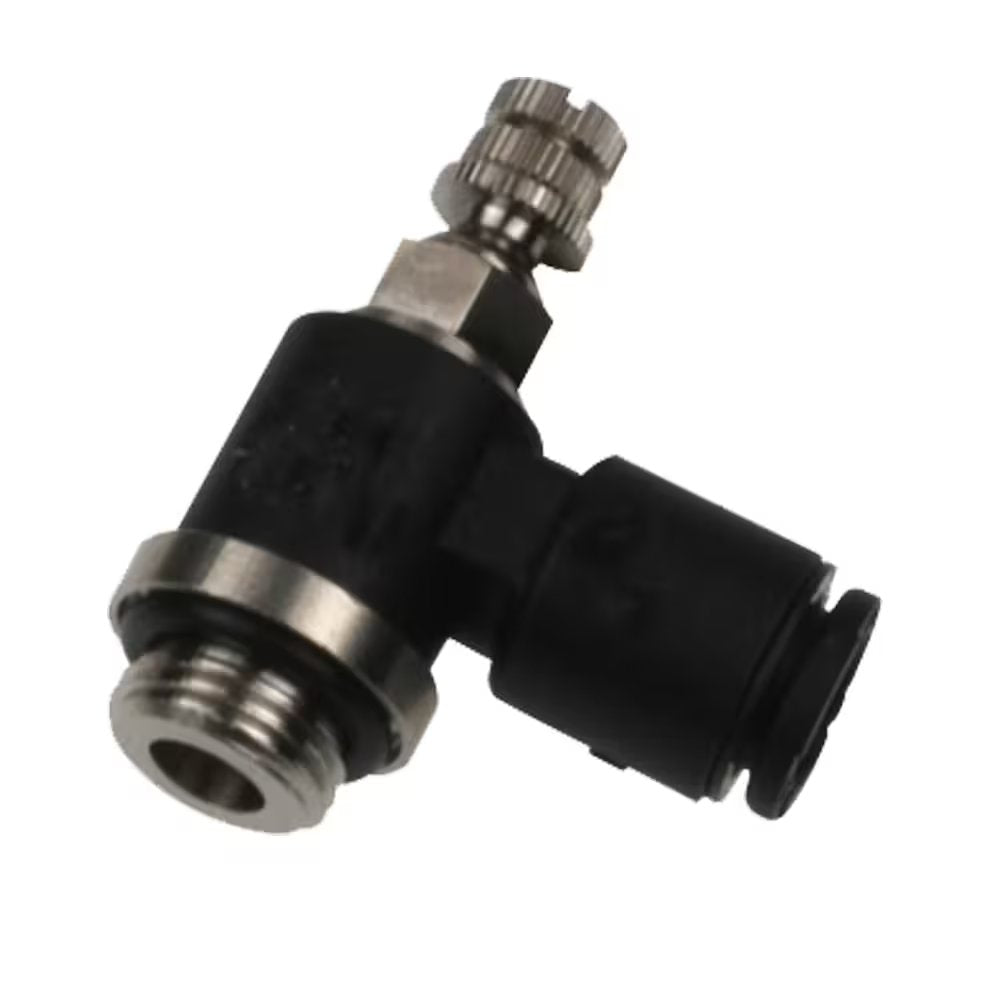

FCMB731-4M-2G by Parker | Miniature Flow Controls | 4mm Push-to-Connect x 1/8" Male BSPP Thread | 7mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

FCMB731-4M-2G by Parker | Miniature Flow Controls | 4mm Push-to-Connect x 1/8" Male BSPP Thread | 7mm Hex | 90° Elbow | Glass-Reinforced Nylon | Pack of 10

Sale price$179.52

by Parker Hannifin
Miniature Flow Controls:FCMB731 Miniature Bi-directional Flow Control - BSPP

Package Quantity: 10 Units

Buy More, Save More!
Quantity Price Each
20–29 $168.75
30–59 $152.59
60+ $134.64
Discounts applied in cart/checkout.

Product Data:

Series:
  • FCM731 Series
Shape:

90° Elbow

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/8in Male BSPP
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless steel gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated brass threads
  • Nitrile D seal
  • NPT
  • BSPT
  • BSPP
  • Metric threads
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size BSPP Hex H Closed H Open L
FCMB731-4M-M5 4 mm M5X0.8 6 mm 23.5 mm 26.0 mm 16.5 mm
FCMB731-4M-2G 4 mm 1/8" 7 mm 27.0 mm 29.5 mm 17.0 mm
FCMB731-6M-M5 6 mm M5X0.8 6 mm 23.5 mm 26.0 mm 18.0 mm
FCMB731-6M-2G 6 mm 1/8" 7 mm 27.0 mm 29.5 mm 18.0 mm
FCMB731-6M-4G 6 mm 1/4" 8 mm 30.0 mm 32.5 mm 18.5 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
