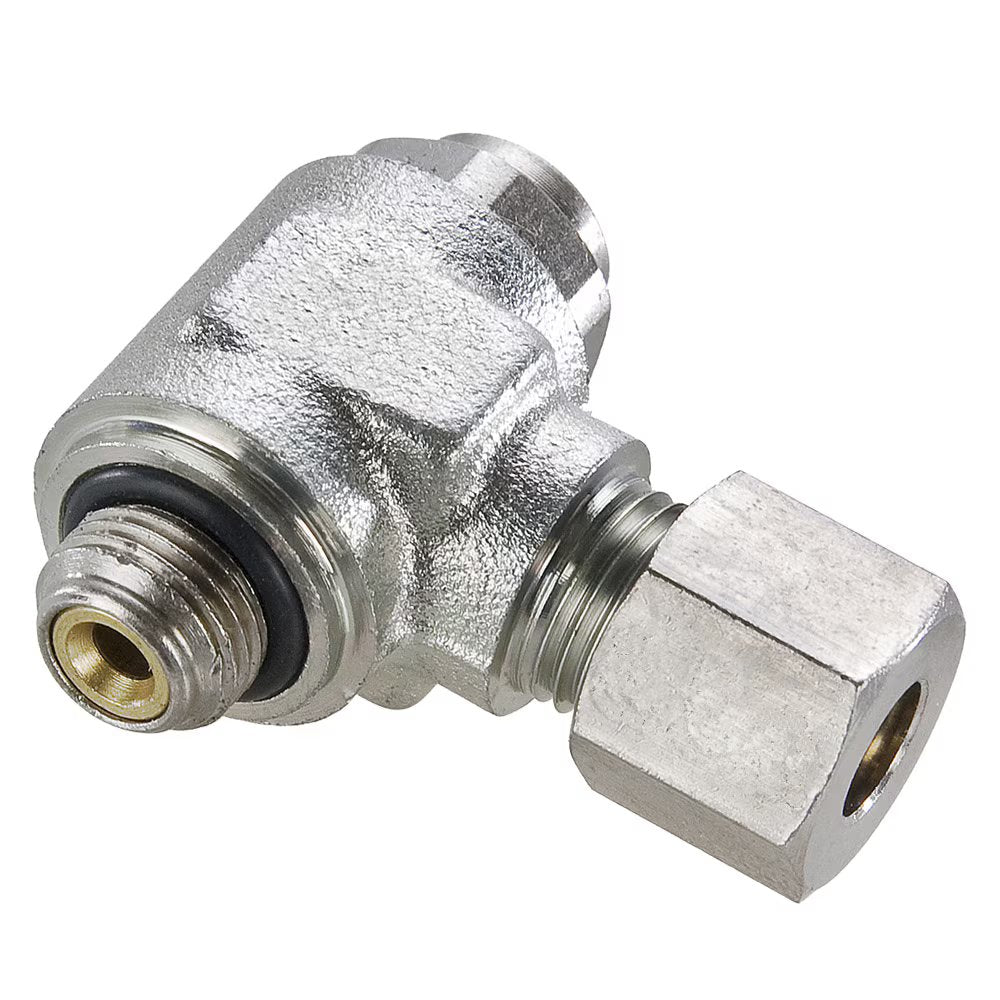

FCK701C-6M-2G by Parker | Knobless Compression Metal Flow Control | 6 mm Compression x 1/8" Male BSPP Thread | 13 mm Height | 90° Elbow | Nickel Plated Brass | Pack of 5
by Parker Hannifin
Metal Flow Controls:FCK701C Knobless Compression Metal Flow Control - BSPP
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–29 | $185.75 |
| 30–59 | $167.97 |
| 60+ | $148.21 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
90° Elbow
Ends Configuration:
Material(s):
Seal Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Applications: |
|
| Pressure Range: | 15 to 145 psi (1.0 to 9.9 bar) |
| Temperature Range: | -4° to +158° F (-20° to +70° C) |
| Compatible Tubing: |
|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP | Hex 1 | Hex 2 | H | L | L1 |
| FCK701C-4M-2G | 4 mm | 1/8" | 13 mm | 10 mm | 26.0 mm | 25.5 mm | 14.5 mm |
| FCK701C-6M-2G | 6 mm | 1/8" | 13 mm | 13 mm | 26.0 mm | 25.5 mm | 14.5 mm |
| FCK701C-8M-2G | 8 mm | 1/8" | 13 mm | 14 mm | 26.0 mm | 29.5 mm | 15.5 mm |
| FCK701C-8M-4G | 8 mm | 1/4" | 17 mm | 14 mm | 31.5 mm | 31.0 mm | 17.0 mm |
| FCK701C-10M-4G | 10 mm | 1/4" | 17 mm | 19 mm | 31.5 mm | 35.0 mm | 19.0 mm |
| FCK701C-10M-6G | 10 mm | 3/8" | 20 mm | 19 mm | 44.5 mm | 37.5 mm | 19.0 mm |
| FCK701C-10M-8G | 10 mm | 1/2" | 23 mm | 19 mm | 50.0 mm | 37.5 mm | 19.0 mm |
| FCK701C-12M-8G | 12 mm | 1/2" | 23 mm | 22 mm | 50.0 mm | 38.0 mm | 21.5 mm |
