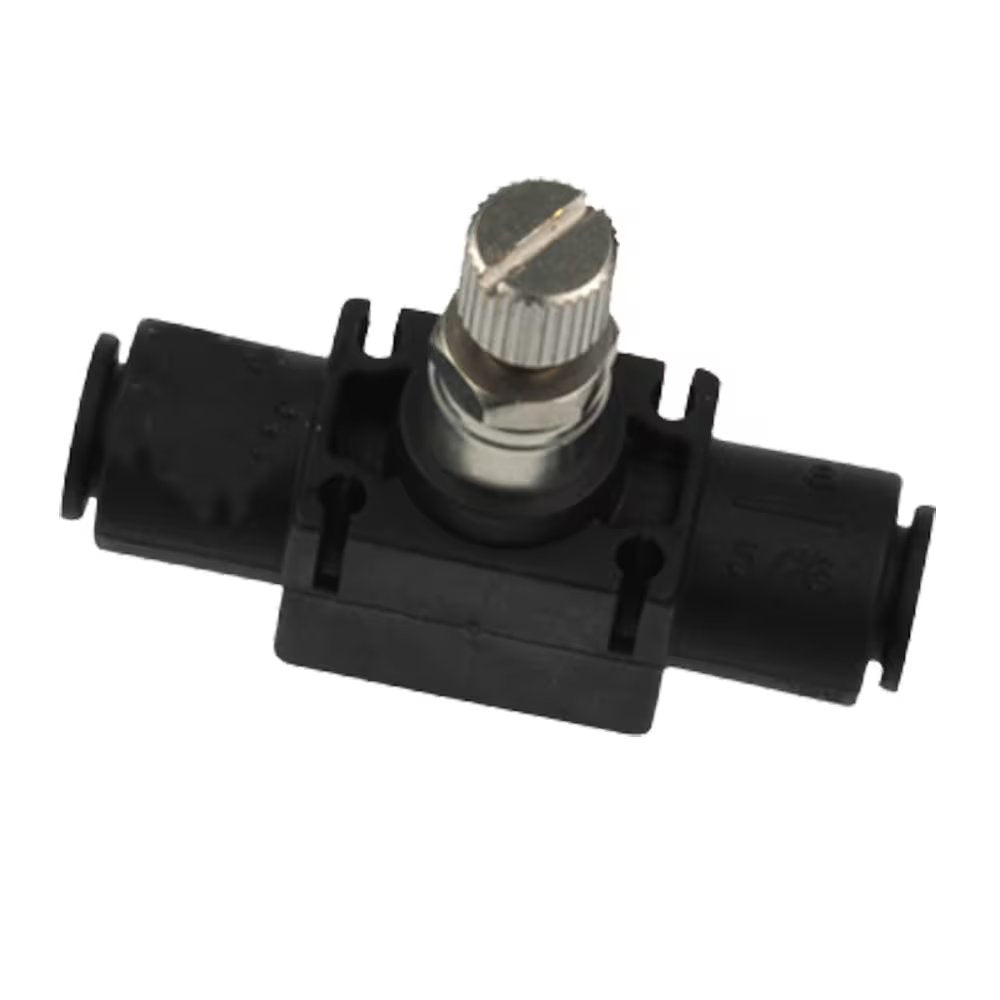

FCB832-8M by Parker | In-Line Bi-directional Flow Control | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 60.5 mm Length | 50.0 mm Width | Straight | Glass-Reinforced Nylon | Pack of 5

FCB832-8M by Parker | In-Line Bi-directional Flow Control | 8 mm Push-to-Connect x 8 mm Push-to-Connect | 60.5 mm Length | 50.0 mm Width | Straight | Glass-Reinforced Nylon | Pack of 5

Sale price$287.78

by Parker Hannifin
In-Line Flow Controls:FCB832 In-Line Bi-directional Flow Control

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
5–14 $270.51
15–29 $244.61
30+ $215.84
Discounts applied in cart/checkout.

Product Data:

Series:
  • FCB832 Series
Shape:

Straight

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match
Product Features:
  • Glass reinforced nylon 6.6 body
  • Stainless straight gripping ring
  • Nickel-plated brass adjustment screw
  • Nickel-plated brass locking nut
  • Nickel-plated threads
  • Nitrile D seal
  • Panel mountable
Markets:
  • Factory/Process Automation
  • Life Science
  • Food Processing
  • Water And Beverage
  • Petrochemical
Applications:
  • Packaging
  • Filling
  • Dispensing
  • Bottling
  • Pneumatic Circuits
Pressure Range: 15 to 145 psi (1.0 to 9.9 bar)
Temperature Range: +32° to +158° F (0 to +70° C)
Compatible Tubing:
  • Semi-rigid nylon
  • Polyurethane 95 Durometer Shore A
  • Nylon
  • Fluoropolymer
Part Number Tube Size Hex H Closed H Open K L L1 N1 N2 T
FCB832-4M 4 mm 5 mm 29.5 mm 33.5 mm 12.0 mm 36.0 mm 15.0 mm 8.0 mm 11.0 mm 2.2 mm
FCB832-6M 6 mm 8 mm 40.0 mm 44.5 mm 17.0 mm 51.0 mm 23.0 mm 11.0 mm 17.0 mm 3.2 mm
FCB832-8M 8 mm 11 mm 44.0 mm 50.0 mm 18.5 mm 60.5 mm 26.0 mm 12.5 mm 20.0 mm 3.2 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
