FC802-06 Aeroquip by Danfoss | Multi-Refrigerant A/C & Refrigeration Hose | SAE J51 | 0.33" ID
Aeroquip® by Danfoss

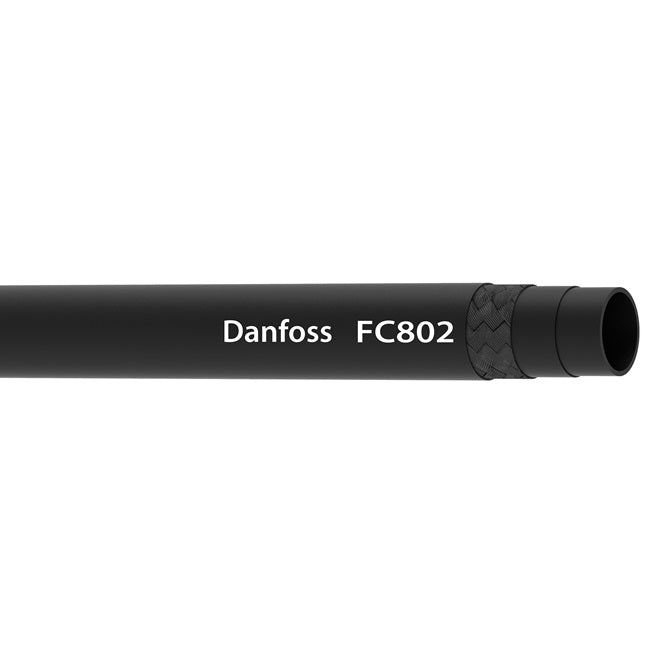

FC802 Series | Multi-Refrigerant A/C & Refrigeration Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $13.62 |
| 40–79 | $12.32 |
| 80+ | $10.87 |
Product Data:
500
| Hose Properties: | |||
|---|---|---|---|
| Application: | Mobile A/C. Stationary A/C system and refrigeration. |
SAE Rating: | Meets: SAE J51 |
| Other Ratings: | N/A | Tube: | Polyamide veneer |
| Other Ratings: | Meets: SAE J51 | Cover: | Bromobutyl |
| Tube: | Polyamide Veneer | Reinforcement: | Single Polyester Braid |
| Operating Parameters: | -40°F to +121°F (-40°C to +250°C) HFC 134a effusion .25 lbs/ft2/yr at 176°F (1.21 kg/m2/yr at 80°C) Moisture ingression .08 gm/in2/yr (.013/cm2/yr)(Class 1) |
||
| Benefits: | Excellent flexibility and heat resistance. Excellent noise and kink resistance. Ease of installation and routing. |
||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum Service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | kPa | in/Hg | |
| FC802-04 | 4 | 5,1 mm | 0.20" | 13,2mm | 0.52" | 35 bar | 500 psi | 175 bar | 2500 psi | 50,8mm | 2.0" | 0,16 kg/m | 0.11 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC802-06 | 6 | 8,38mm | 0.33" | 17,3mm | 0.68" | 35 bar | 500 psi | 175 bar | 2500 psi | 63,5mm | 2.5" | 0,24 kg/m | 0.16 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC802-08 | 8 | 10,67mm | 0.42" | 19,6mm | 0.77" | 35 bar | 500 psi | 175 bar | 2000 psi | 76,2mm | 3.0" | 0,27 kg/m | 0.18 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC802-10 | 10 | 13,2mm | 0.52" | 23,4mm | 0.92" | 35 bar | 500 psi | 175 bar | 2500 psi | 88,9mm | 3.5" | 0,42 kg/m | 0.28 lbs/ft | 94,8 kPa | 28 in/Hg |
| FC802-12 | 12 | 16,51mm | 0.65" | 27,4mm | 1.08" | 35 bar | 500 psi | 175 bar | 2500 psi | 114,3mm | 4.5" | 0,51 kg/m | 0.34 lbs/ft | 94,8 kPa | 28 in/Hg |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
