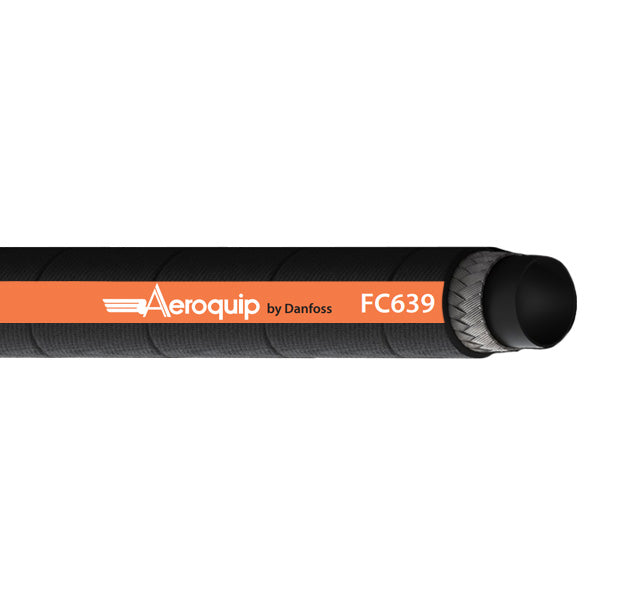

FC639-08 Aeroquip by Danfoss | MatchMate® Global 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose | SAE 100R1 | 0.50" ID
Minimum Order Quantity: 500 Units
Aeroquip® by Danfoss
FC639 Series | MatchMate® Global 3000 PSI Constant Pressure Wire Braid Hydraulic Hose
Recommended for highpressure oil lines used on construction equipment and other off-highway applications.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $8.17 |
| 40–79 | $7.39 |
| 80+ | $6.52 |
Product Data:
3000
| Hose Properties: | |||
|---|---|---|---|
| Application: | General industrial and hydraulic system service with petroleum and waterbased fluids. | SAE Rating: | Meets: SAE 100R17 |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | Single or Double-wire braid | Cover: | Ozone Flexible Neoprene Rubber |
| Temperature Range: | (-40°F to +212°F) (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC639-04 | 6 | 6,4mm | 0.25" | 12,7mm | 0.50" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 50,8mm | 2.00" | 0,22 kg/m | 0.15 lbs/ft |
| FC639-06 | 10 | 9,7mm | 0.38" | 16,5mm | 0.65" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 63,5mm | 2.50" | 0,34 kg/m | 0.23 lbs/ft |
| FC639-08 | 12 | 12,7mm | 0.50" | 20,8mm | 0.82" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 88,9mm | 3.50" | 0,48 kg/m | 0.32 lbs/ft |
| FC639-10* | 16 | 16,0mm | 0.63" | 24,9mm | 0.98" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 101,6mm | 4.00" | 0,76 kg/m | 0.51 lbs/ft |
| FC639-12* | 19 | 19,1mm | 0.75" | 28,48mm | 1.12" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 120,7mm | 4.75" | 0,94 kg/m | 0.63 lbs/ft |
| FC639-16* | 25 | 25,4mm | 1.00" | 37,1mm | 1.46" | 210,0 bar | 3000 psi | 840,0 bar | 12000 psi | 152,4mm | 6.00" | 1,24 kg/m | 0.83 lbs/ft |
* Double wire braids of high tensile wire.
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
