FC579-04 Aeroquip by Danfoss | HI-IMPULSE Jack hose 10,000 PSI Double Wire Braid Hydraulic Hose | Meets IJ100 | 0.25" ID
Aeroquip® by Danfoss

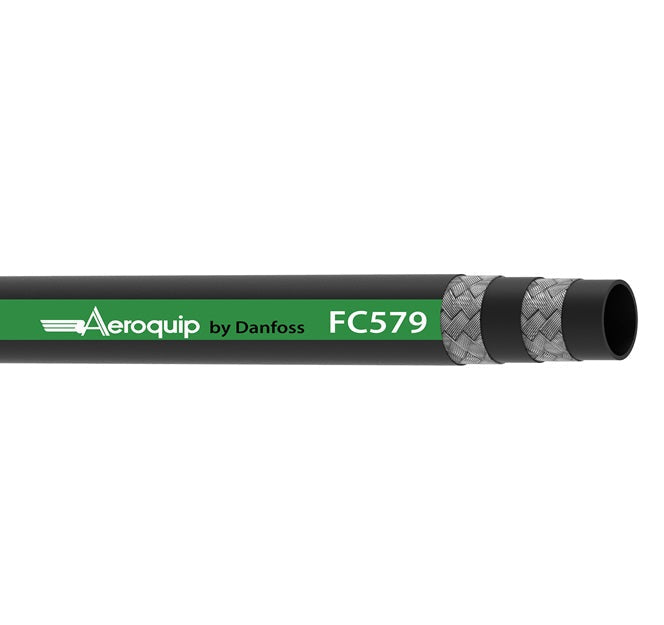

FC579 Series | HI-IMPULSE Jack hose 10,000 PSI Double Wire Braid Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.93 |
| 40–79 | $10.79 |
| 80+ | $9.52 |
Product Data:
690
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic jacking system service with petroleum and water-based fluids. | SAE Rating: | N/A |
| Other Ratings: | Meets the performance requirements of the Material Handling Institute Specification IJ100. | Tube: | Synthetic Rubber |
| Reinforcement: | Double Wire Braid | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | -40°F to +212°F (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC579-04 | 6 | 6,4mm | 0.25" | 13,5mm | 0.53" | 690,0 bar | 10000 psi | 1400,0 bar | 20000 psi | 50,8mm | 2.00" | 0,33 kg/m | 0.22 lbs/ft |
| FC579-06 | 10 | 9,7mm | 0.38" | 17,5mm | 0.69" | 690,0 bar | 10000 psi | 1400,0 bar | 20000 psi | 63,5mm | 2.50" | 0,43 kg/m | 0.29 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
