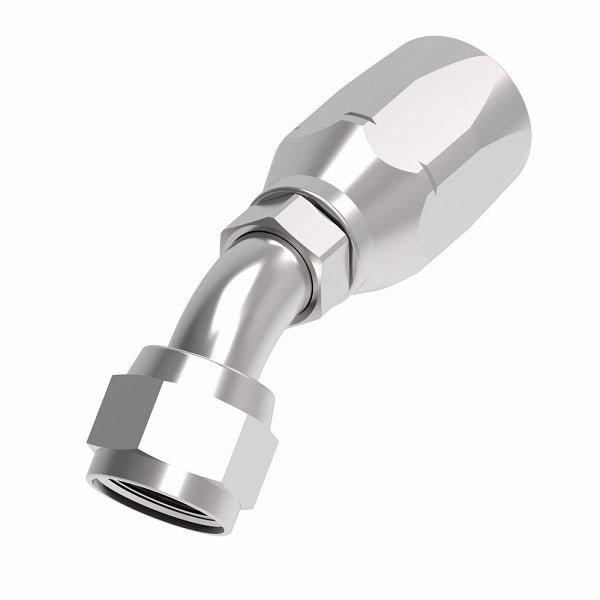

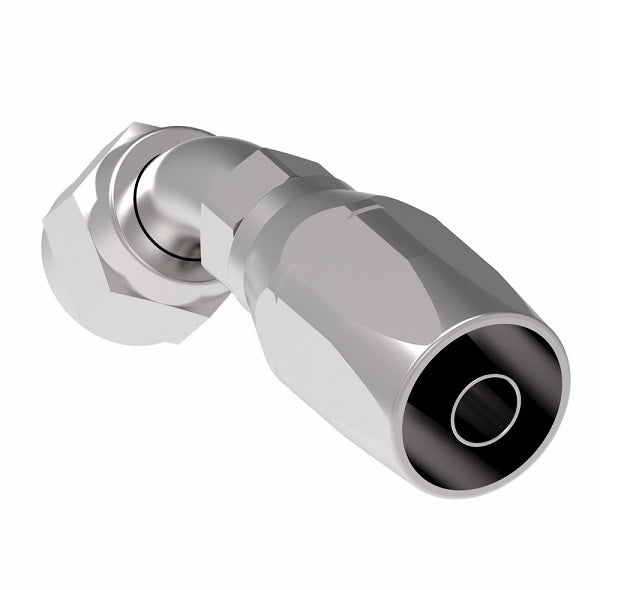

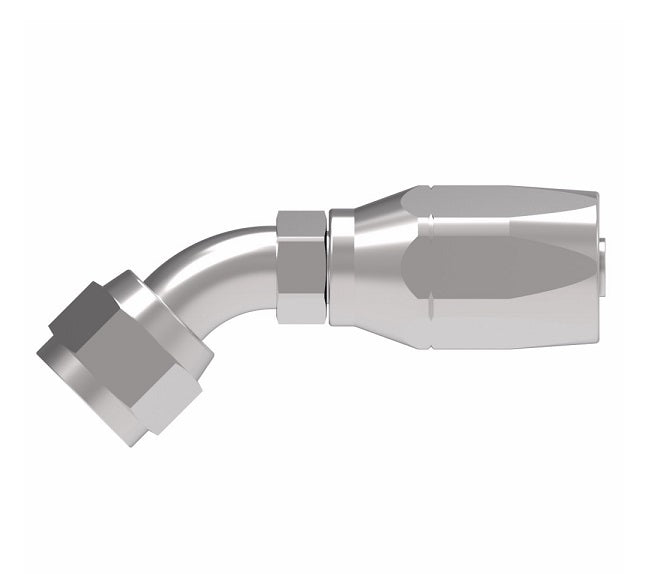

FC5144-0404S Aeroquip by Danfoss | 2 Wire Hi-Pac Female 37° JIC Swivel 45° Elbow Reusable Hose Fitting for Braided Hydraulic Hose | FC Series | -04 Female 37° JIC Swivel x -04 Reusable Hose End | Steel
Aeroquip® by Danfoss
2 Wire Hi-Pac Reusable Hose Fitting for Braided Hydraulic Hose - FC Series - Female 37° JIC Swivel - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $100.03 |
| 20–59 | $90.46 |
| 60+ | $79.82 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Hose Size | Thread | A | D | EØ | H |
| FC5144-0404S | -04 | 7/16-20 | 2.47" | 1.25" | 0.17" | 0.33" |
| FC5144-0606S | -06 | 9/16-18 | 2.82" | 1.35" | 0.31" | 0.39" |
| FC5144-0808S | -08 | 3/4-16 | 3.30" | 1.73" | 0.39" | 0.55" |
| FC5144-1212S | -12 | 11/16-12 | 4.15" | 2.28" | 0.61" | 0.78" |
| FC5144-1616S | -16 | 1-5/16-12 | 5.03" | 2.92" | 0.82" | 1.07" |
