FC254-16 Aeroquip by Danfoss | 4S 4-Spiral Wire Hydraulic Hose | Exceeds: EN 856 4SP | 1.00" ID
Aeroquip® by Danfoss

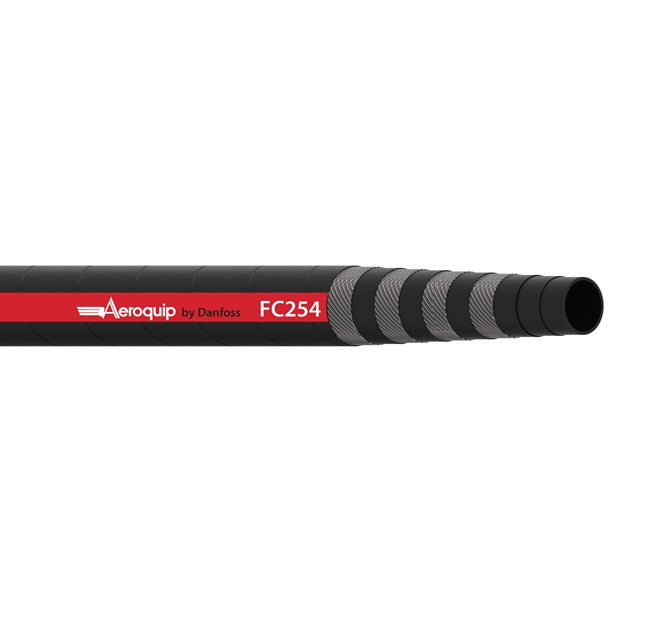

FC254 Series | 4S 4-Spiral Wire Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $41.55 |
| 40–79 | $37.57 |
| 80+ | $33.15 |
Product Data:
6000
| Hose Properties: | |||
|---|---|---|---|
| Application: | Hydraulic system service with petroleum and waterbased fluids. For general industrial use. |
SAE Rating: | Exceeds: EN 856 4SP |
| Other Ratings: | MSHA Accepted | Tube: | Synthetic Rubber |
| Reinforcement: | 4-Spiral Wire | Cover: | DURA-TUFF Synthetic Rubber |
| Temperature Range: | -40°F to +260°F (-40°C to +127°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC254-08 | 12 | 12,7mm | 0.50" | 25,6mm | 1.01" | 530,0 bar | 7700 psi | 2120 bar | 30800 psi | 203,0mm | 8.00" | 1,07 kg/m | 0.72 lbs/ft |
| FC254-12 | 19 | 19,0mm | 0.75" | 32,5mm | 1.28" | 497,0 bar | 7200 psi | 1988 bar | 28800 psi | 279,0mm | 11.0" | 1,58 kg/m | 1.06 lbs/ft |
| FC254-16 | 25 | 25,4mm | 1.00" | 39,4mm | 1.55" | 415,0 bar | 6000 psi | 1660 bar | 24000 psi | 305,0mm | 12.0" | 1,96 kg/m | 1.32 lbs/ft |
| FC254-20 | 31 | 31,8mm | 1.25" | 46,0mm | 1.81" | 350,0 bar | 5100 psi | 1400 bar | 20400 psi | 419,0mm | 16.5" | 2,43 kg/m | 1.63 lbs/ft |
| FC254-24 | 38 | 38,1mm | 1.50" | 55,1mm | 2.17" | 300,0 bar | 4350 psi | 1200 bar | 17400 psi | 508,0mm | 20.0" | 3,02 kg/m | 2.03 lbs/ft |
| FC254-32 | 51 | 50,8mm | 2.00" | 69,3mm | 2.73" | 275,0 bar | 4000 psi | 1100 bar | 16000 psi | 635,0mm | 25.0" | 4,49 kg/m | 3.02 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
